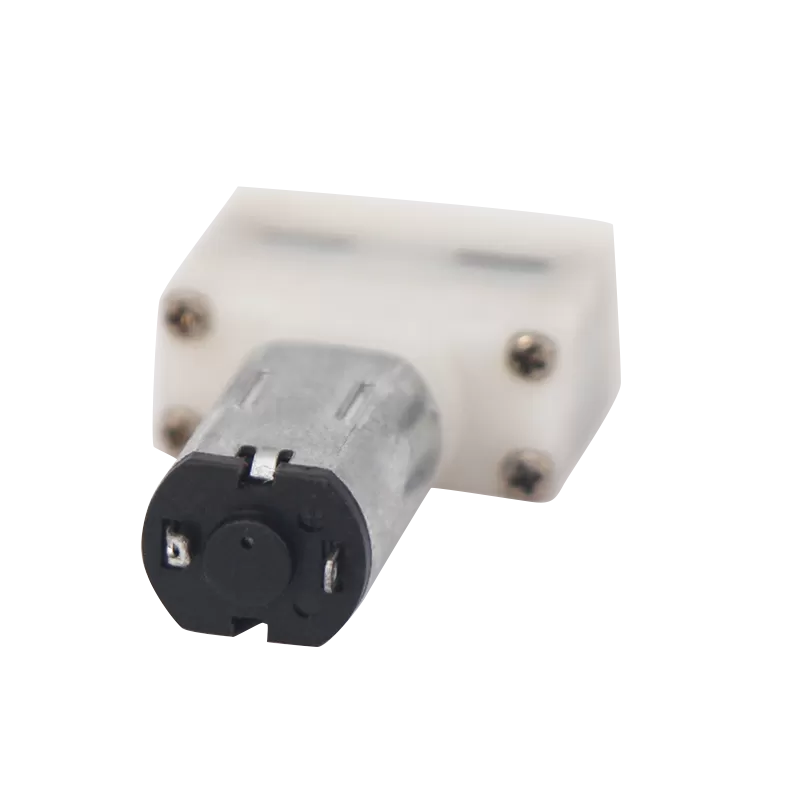

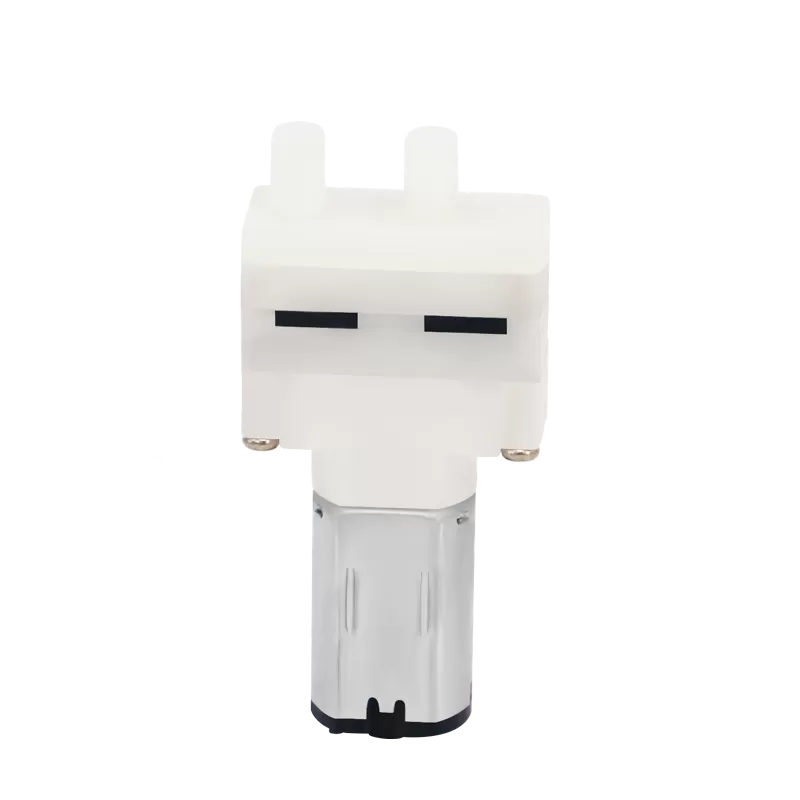

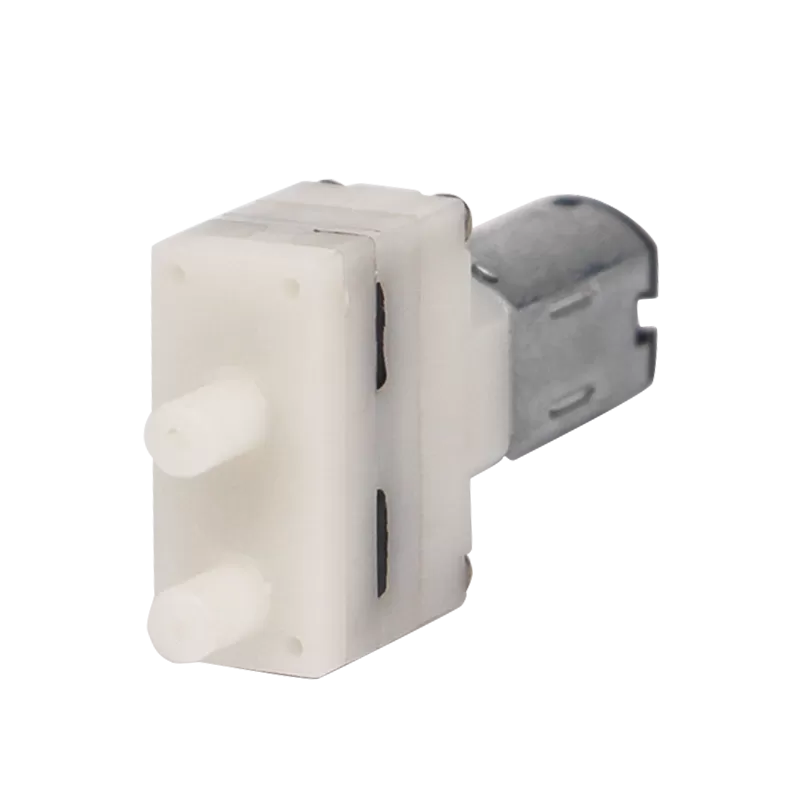

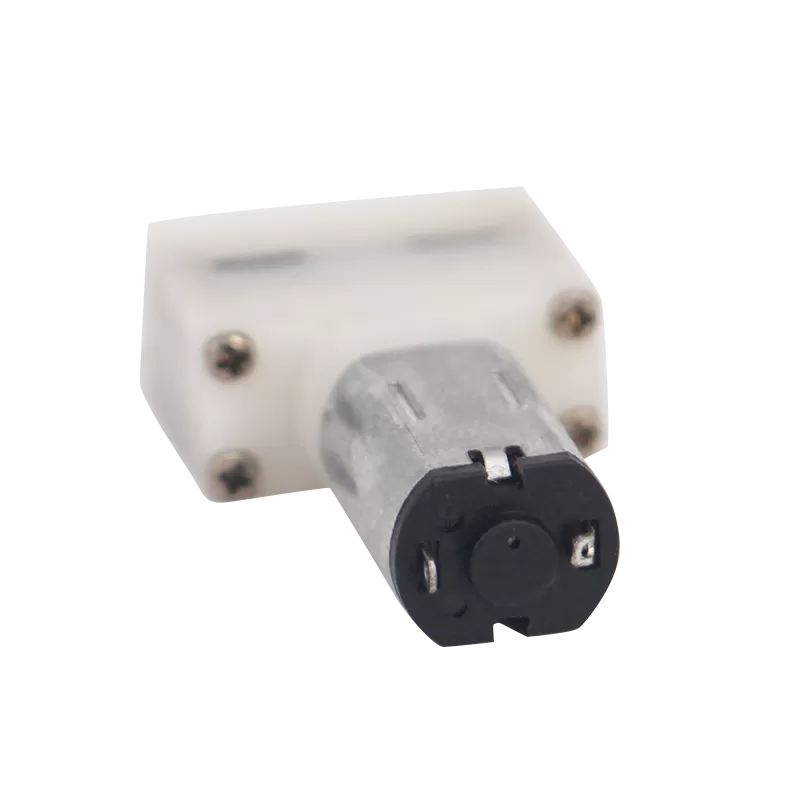

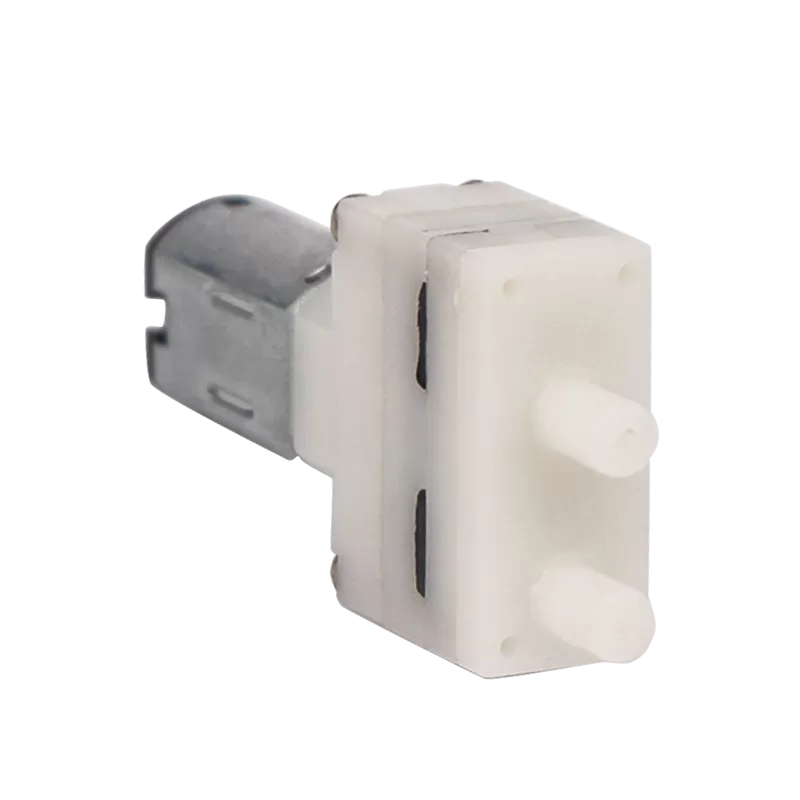

The KYK08VPM Micro Air Pump, driven by a high-quality N20 micro motor, is engineered with a precision structure to ensure a long operational lifespan and excellent reliability. Its extremely compact design allows for seamless integration into space-constrained equipment, making it the ideal core component for devices such as eye massagers, portable blackhead removers, smart wearables, and micro-booster systems. Optimized for quiet operation, the KYK08VPM significantly reduces noise to create a comfortable user experience. Additionally, its quick response and smooth airflow make it perfectly suited for a wide range of precision control applications.
| PRODUCT PERFORMANCE | ||
 | ||
| Rated Voltage | 3.0V | 6.0V |
| Rated Current | 150mA | 130mA |
| Air Flow | 0.15~0.25L/min | |
| Pressure | ＞120mmHg | |
| Leakage | <3mmHg/min from 300mmHg at 100CC tank | |
| Noise | ＜55dB(30 cm away) | |
| Life test | 500H (10s on , 7s off) | |
| Weight | 6g | |
| principal application | Eye massager micro air pump | |
