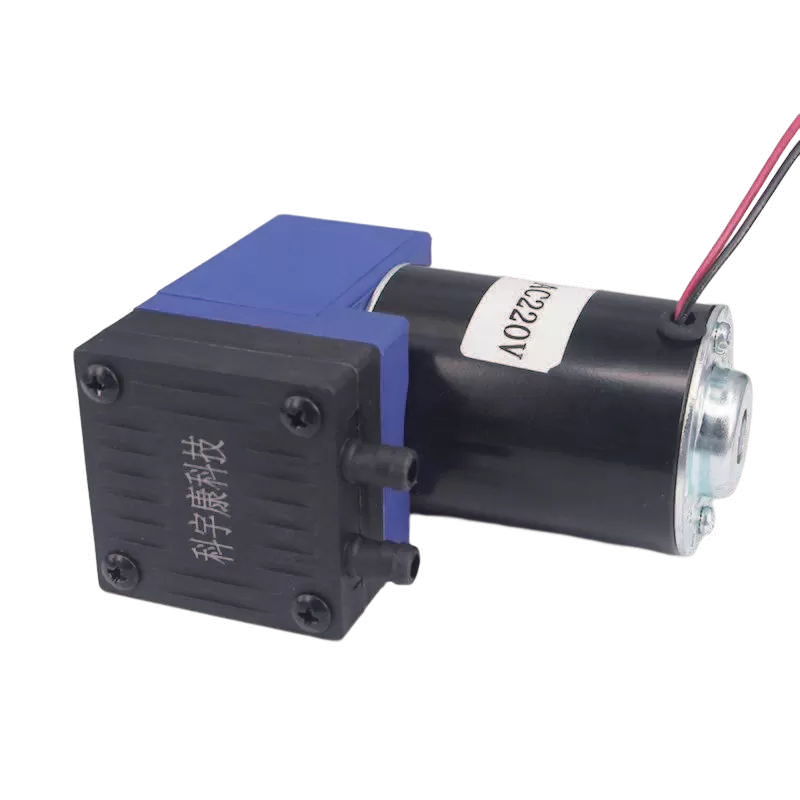

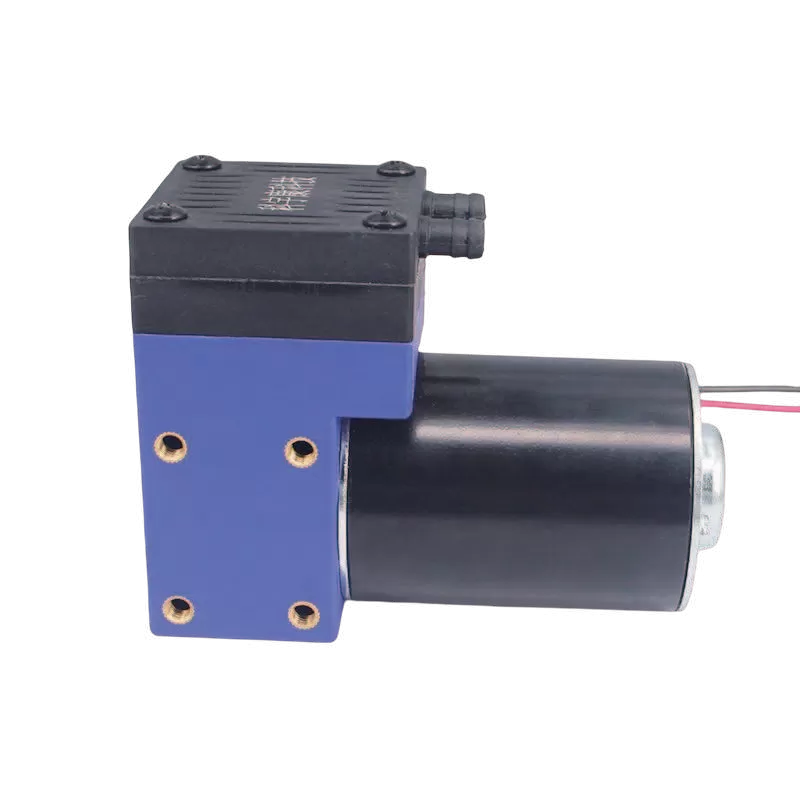

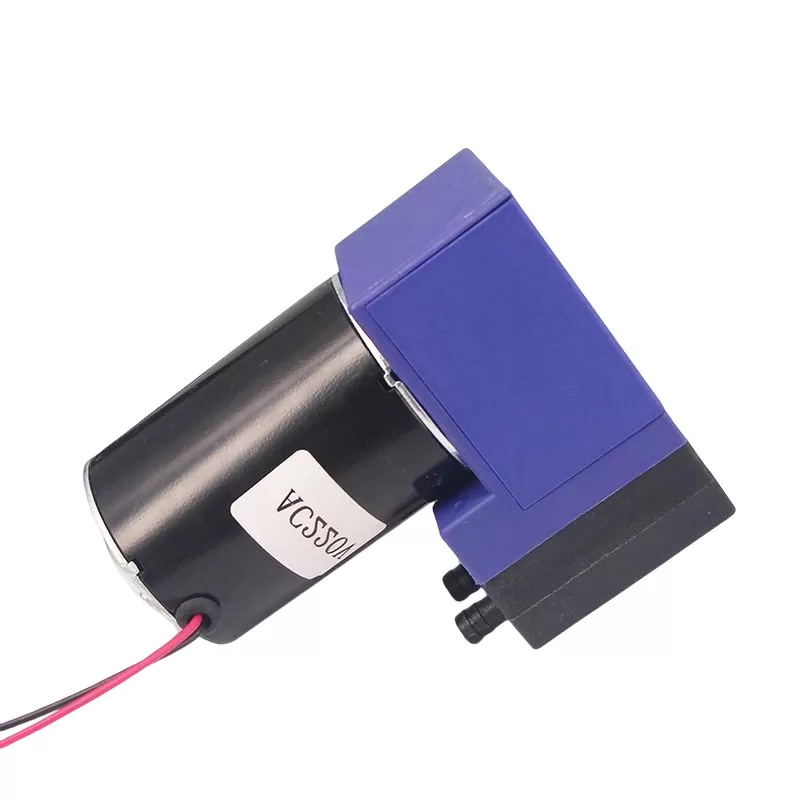

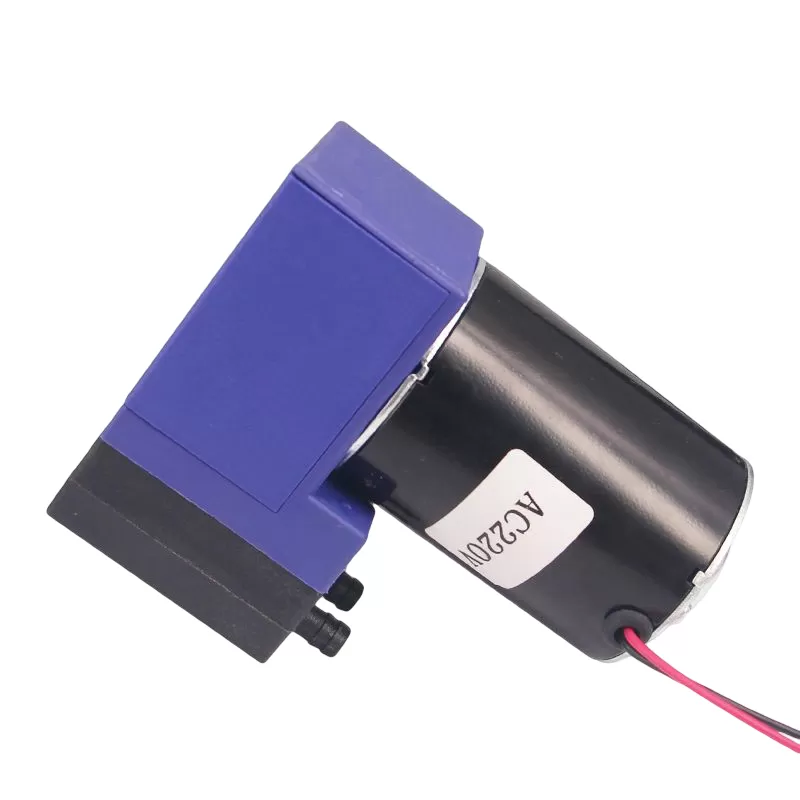

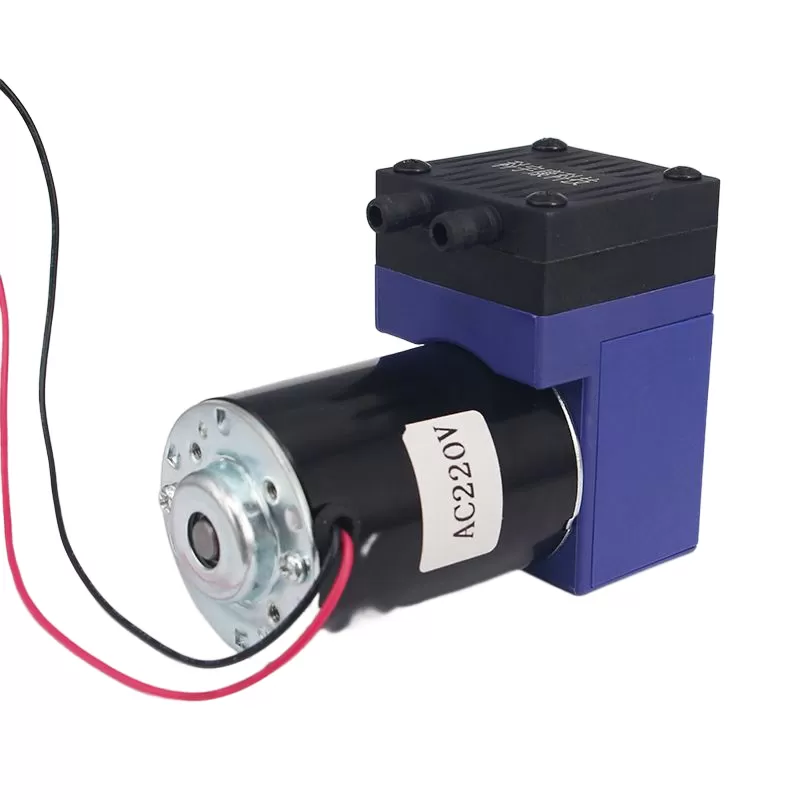

The KYK1585DPM Micro Diaphragm Pump is a high-performance, long-lifespan pressurization solution engineered for modern precision equipment. Leveraging a compact, integrated structure and reliable reciprocating technology, it continuously delivers stable, pure airflow and pressure, serving as a core power component for enhancing device automation and functionality.
Its exceptional versatility is a key feature. The KYK1585DPM excels across a wide range of industries, from providing precise pressure control in smart home appliances like high-end coffee machines, to delivering gentle, continuous output for beauty instruments such as oxygen injectors and body sculpting devices. It is also an ideal driver for pneumatic components in industrial automation and meets the stringent clean, low-noise gas delivery requirements of medical equipment.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 12V | 24V | 110V | 220V |
| Rated Current | 800mA | 900mA | 400mA | 200mA |
| Air Flow | ＞8.0-10.0L/min | |||
| Pressure | >1500mmHg | |||
| Leakage | <3mmHg/min from 300mmHg at 100CC tank | |||
| Noise | ＜68dB(30 cm away) | |||
| Life test | 500H (10s on , 7s off) | |||
| Weight | 640g | |||
| principal application | Micro beauty instrument air pump spray air pump | |||
