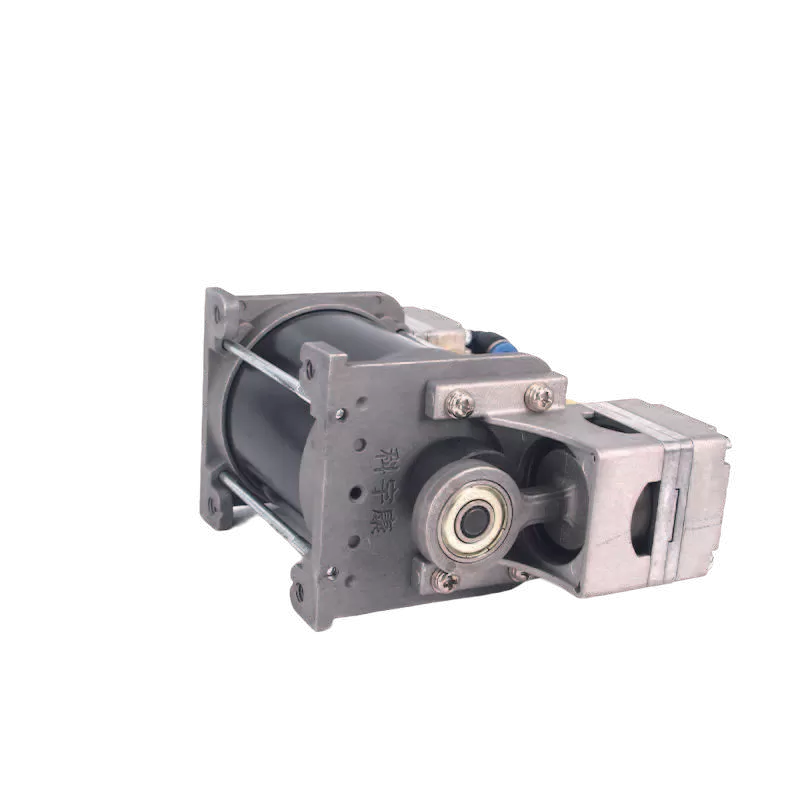

The KYK1798SPM is a high-performance micro air pump powered by a 1798-series high-efficiency DC motor, delivering robust output with low energy consumption. Its reinforced magnetic circuit and wear-resistant carbon brush ensure stable power during continuous operation, significantly extending the device's service life.
A compact structure and an optimized flow path are central to the pump's design, ensuring high reliability and a smooth, low-vibration performance. Its body, made from a combination of high-strength engineering plastic and wear-resistant alloys, is engineered to be both lightweight and highly durable. This thoughtful construction results in stable and quiet operation, making it a trusted component for demanding applications like beauty instruments, portable vacuum-assist devices, and smart home micro-pressure systems.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | 12V | 24V | 220V |
| Rated Current | 300mA | 210mA | 250mA |
| Air flow | 15L/min | ||
| Pressure | ＞550mmHg | ||
| Noise | ＜85dB(30 cm away) | ||
| Life test | 500H (10s on , 7s off) | ||
| Weight | 1325g | ||
| principal application | Beauty instrument, cupping air pump | ||
