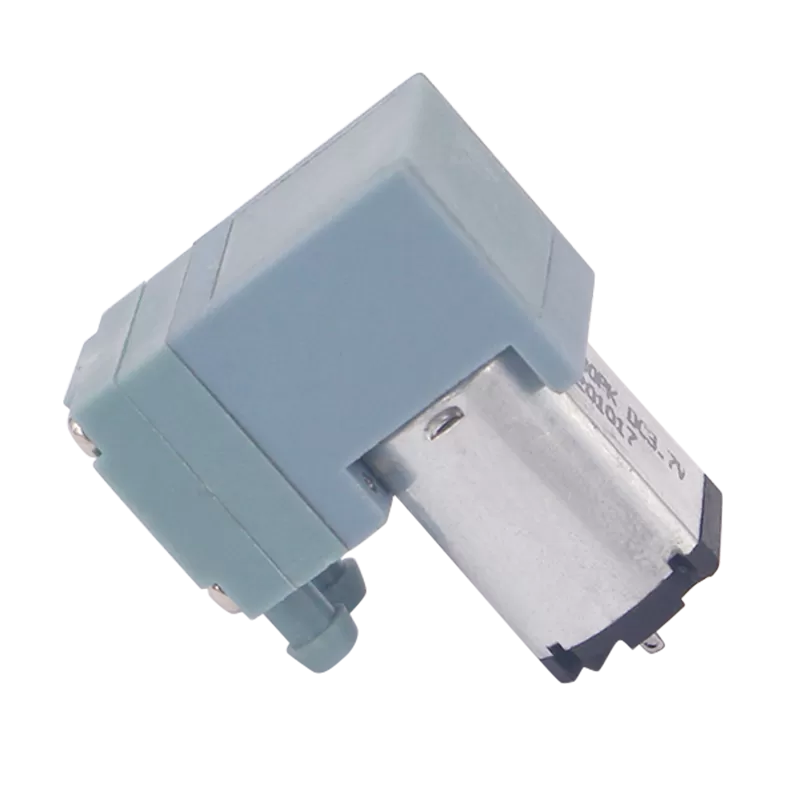

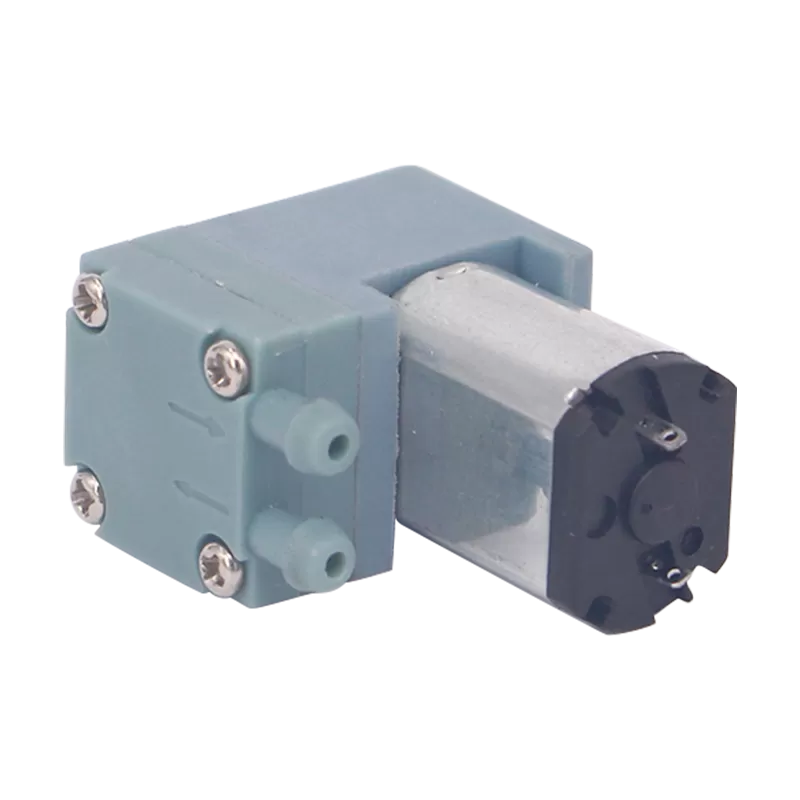

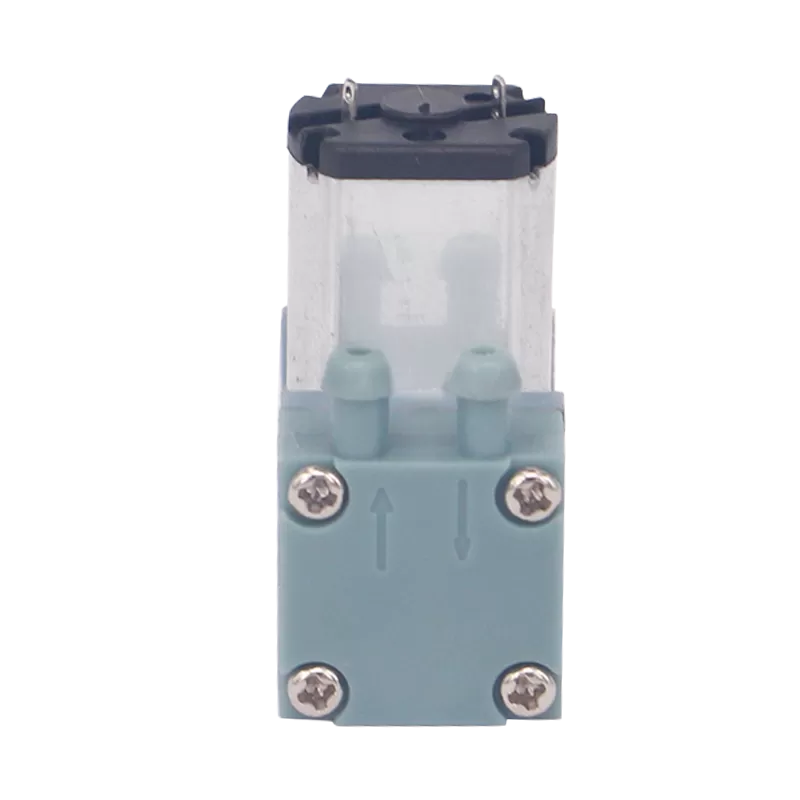

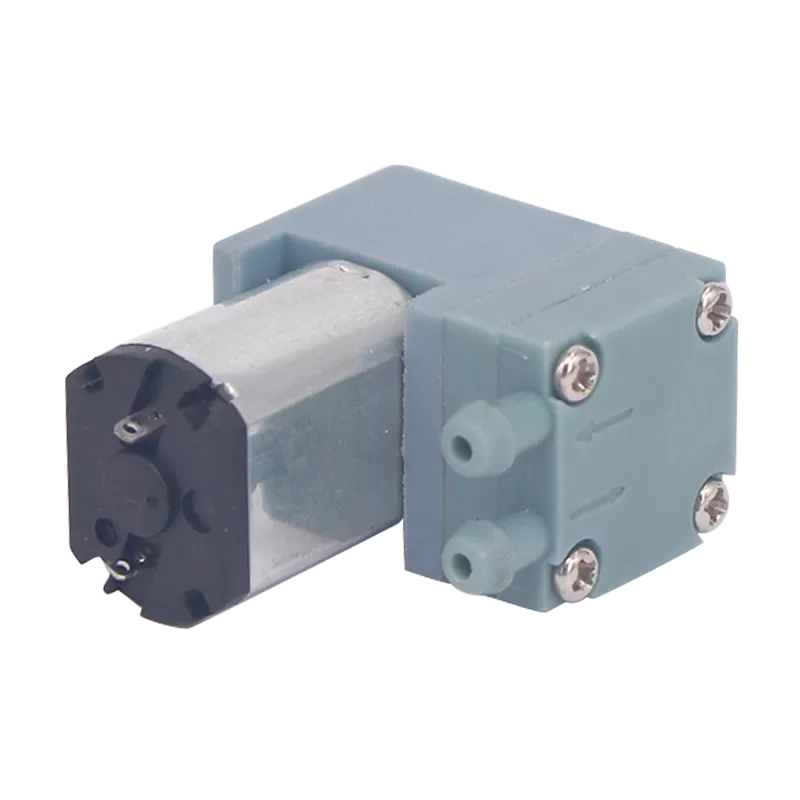

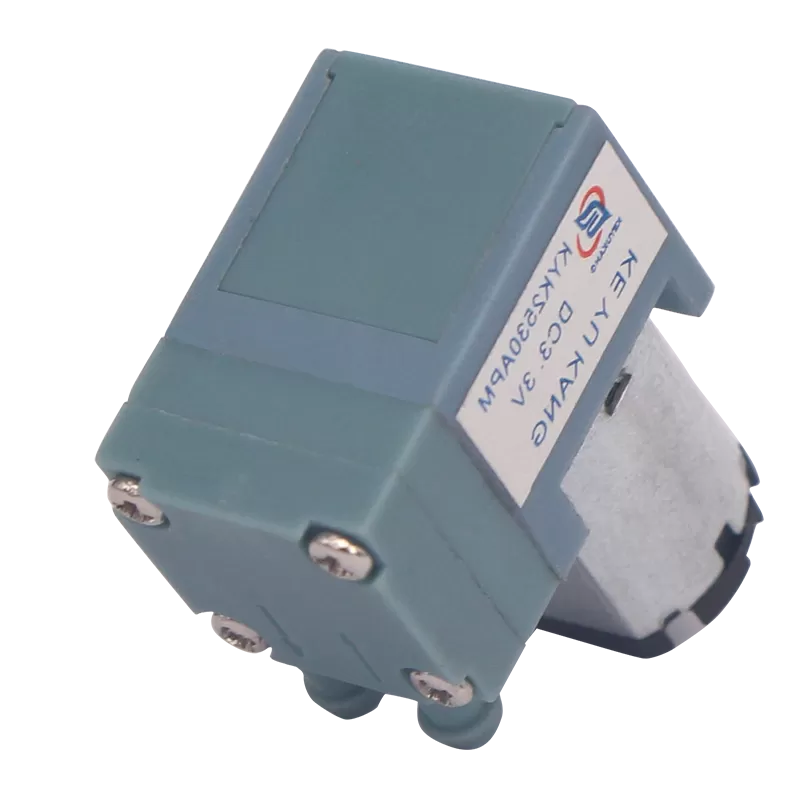

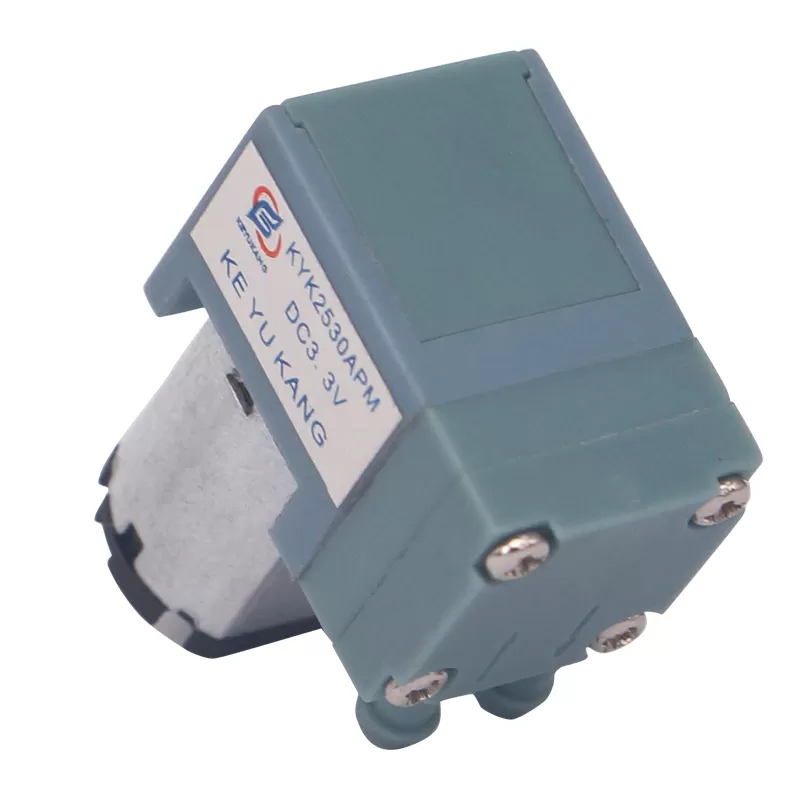

The KYK2530APM is a high-performance micro air pump developed for lightweight equipment. It is powered by a 2530 high-speed DC motor, providing fast response times, stable output, and low energy consumption, making it well-suited for portable devices requiring continuous airflow. The motor's construction, featuring a thickened copper coil and a wear-resistant carbon brush structure, ensures a significantly longer service life compared to similar models, allowing for reliable, long-term continuous operation.
The pump’s design prioritizes a compact structure and maximized efficiency. Its lightweight engineering materials and a precision-optimized internal air path reduce energy loss and achieve a higher pressure output efficiency. With low-vibration, low-noise operation, it enhances the user experience, making it a preferred component for portable beauty instruments, blood pressure monitors, and environmental monitoring equipment.
| PRODUCT PERFORMANCE | ||
 | ||
| Rated voltage | DC3.7V | DC5.0V |
| Rated current | <450mA | <350mA |
| Air flow | >0.5L/min | |
| vacuum | <-150mmHg | |
| Airtightness | <3mmHg/min from 300mmHg at500CC tank | |
| Noise | <65dB | |
| Life test | 200 Hours | |
