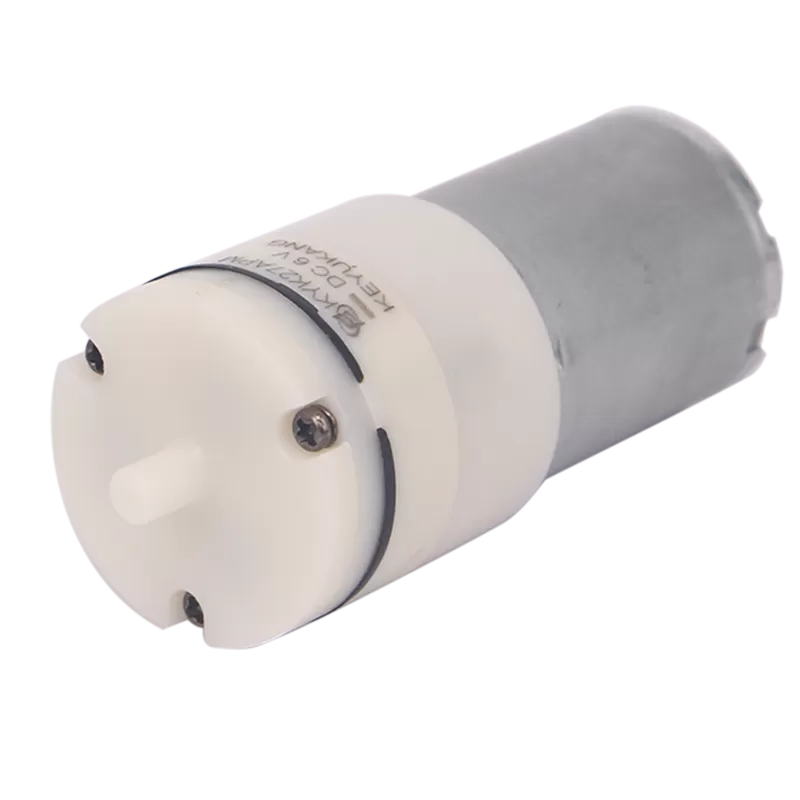

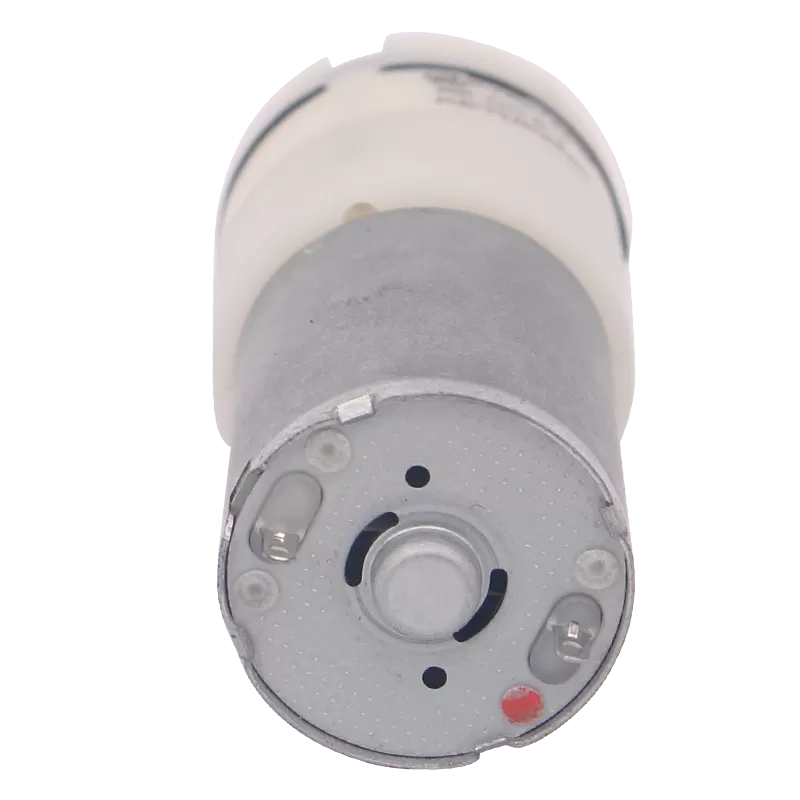

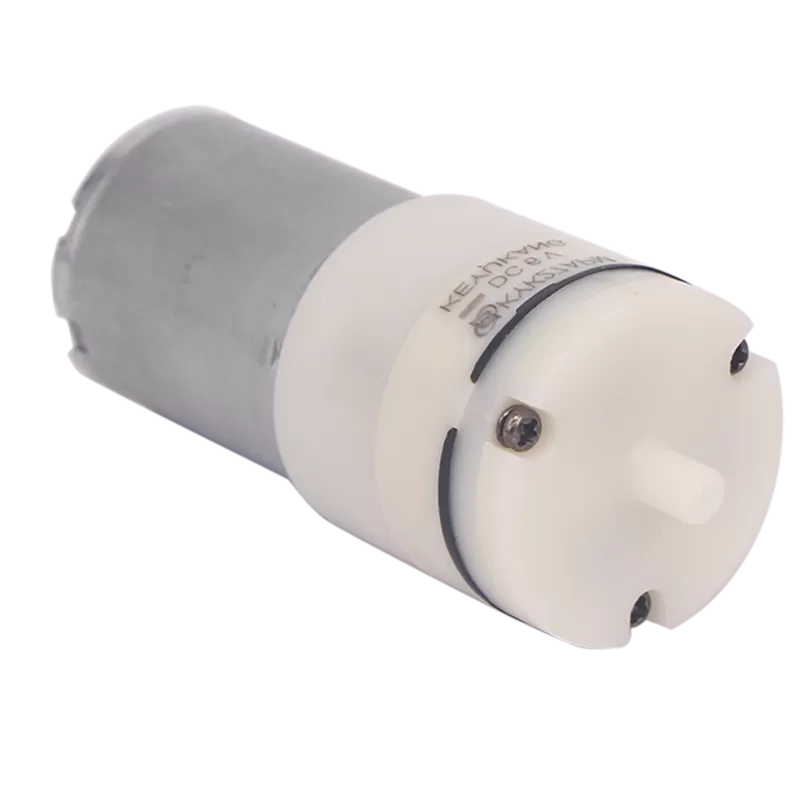

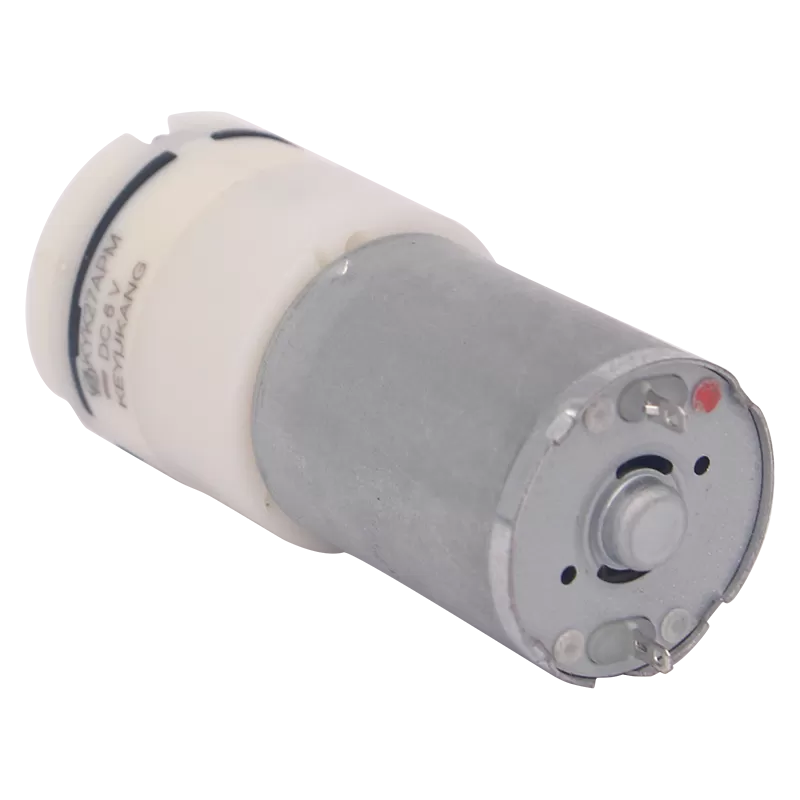

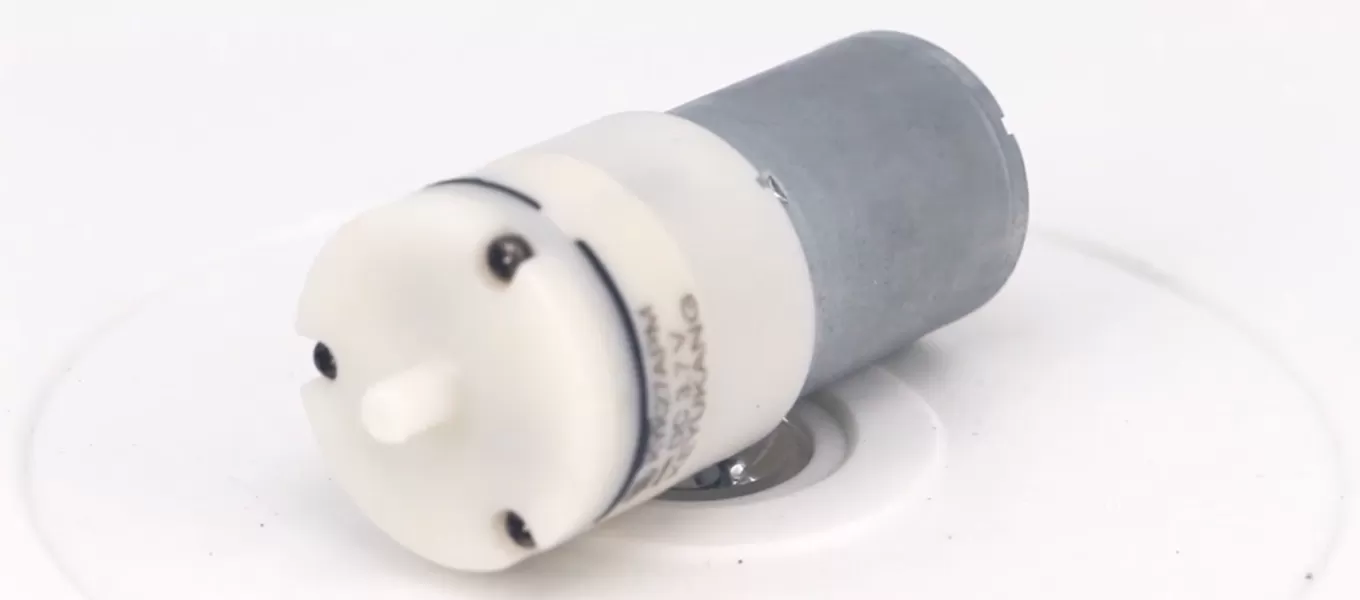

The KYK27APM Micro Positive Pump is a high-performance, compact pump designed for precise fluid handling. Its innovative positive displacement mechanism ensures accurate flow rates and reliable operation in various applications, including laboratory, medical, and industrial settings. It's engineered for durability and efficiency, offering superior performance in small-scale systems.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | DC3.7V | DC6.0V | DC12.0V | DC24.0V |
| Rated Current | <600mA | <450mA | <300mA | <150mA |
| Air Flow | 1-3L/min | |||
| Pressure | >600mmHg | |||
| Airtightness | <3mmHg/min from300mmHg at500CC tank | |||
| Noise | <62dB (30CM away) | |||
| Life test | 500 Hours | |||
| Weight | 60g | |||
