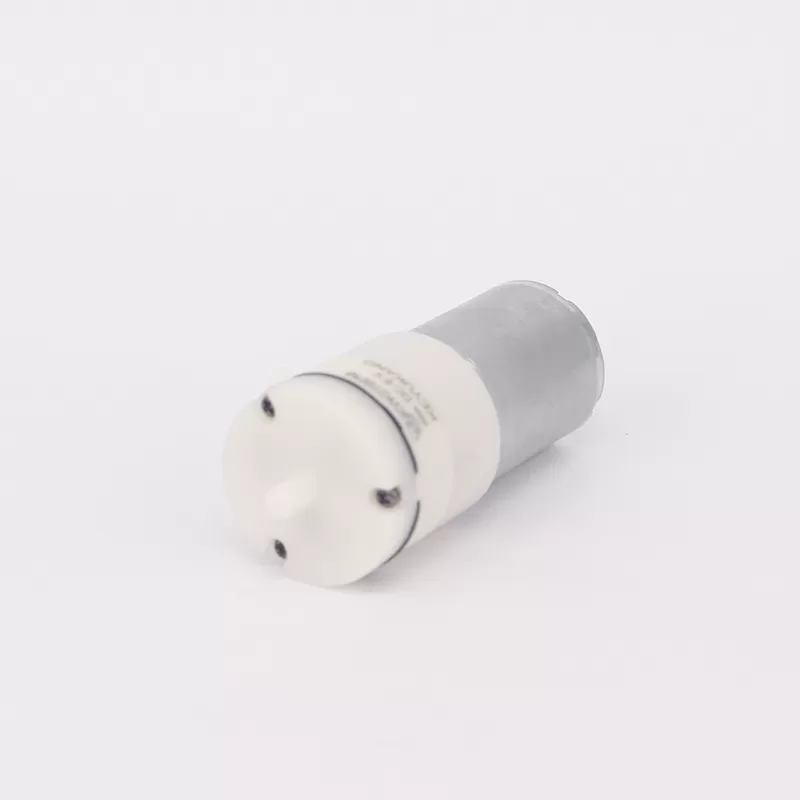

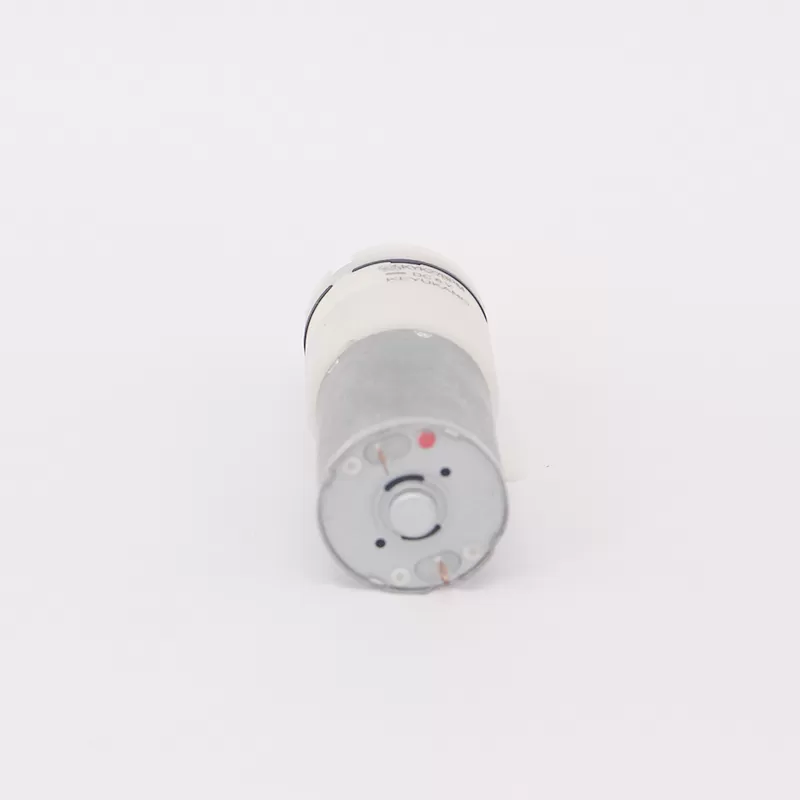

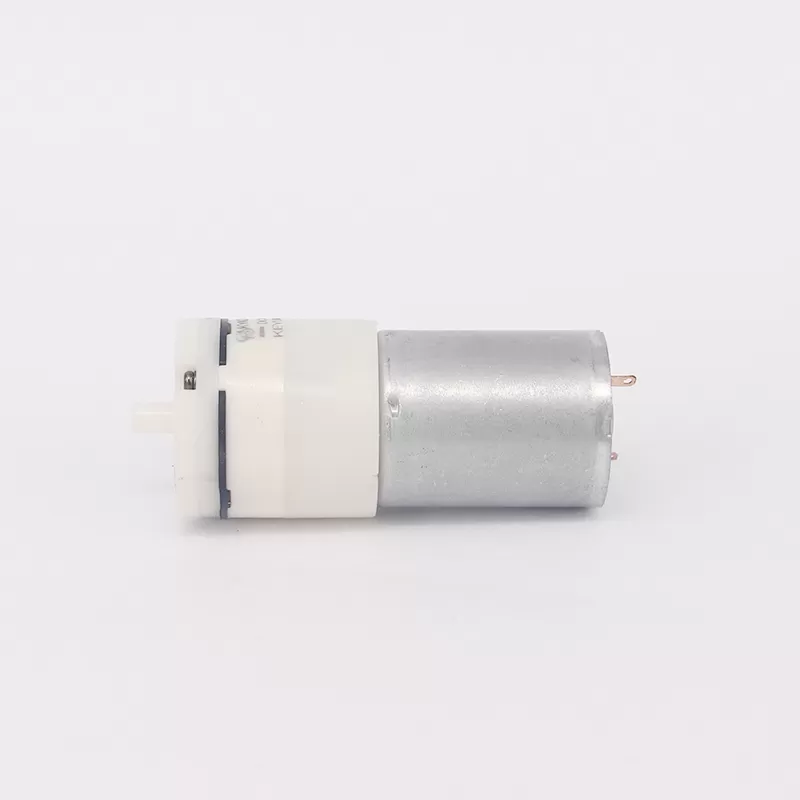

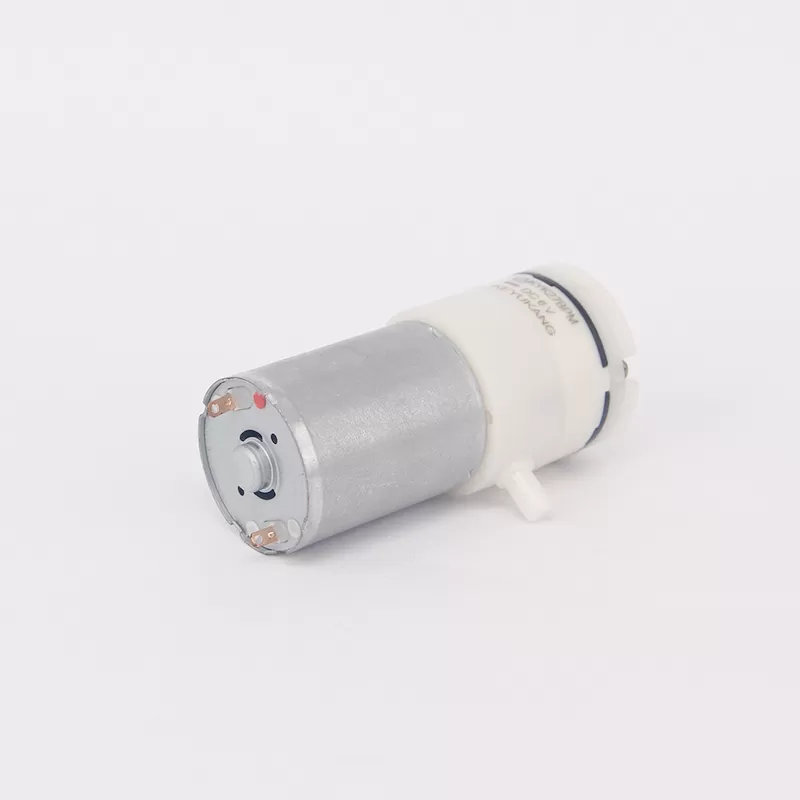

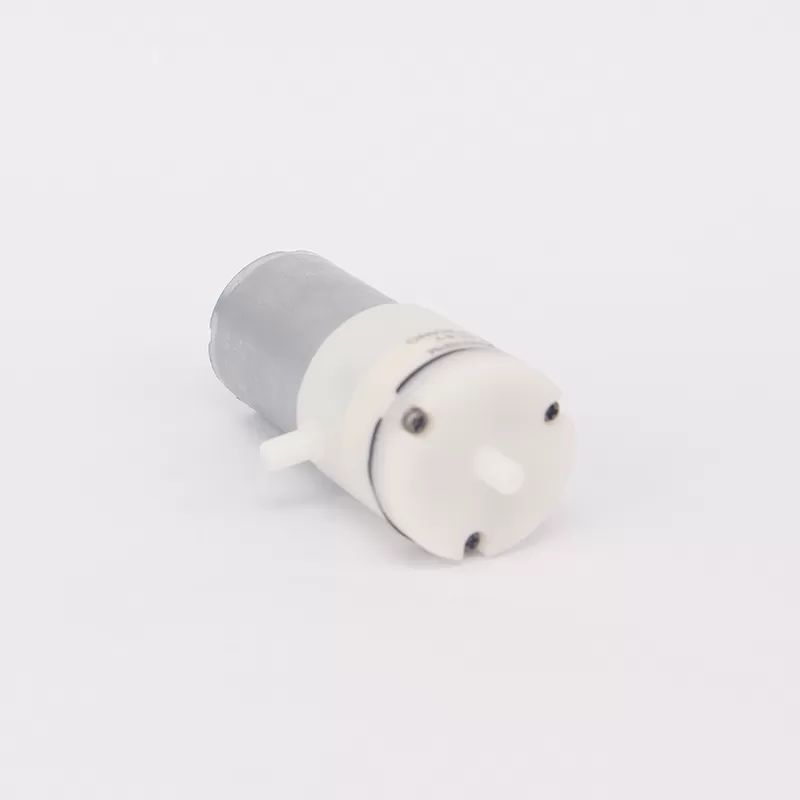

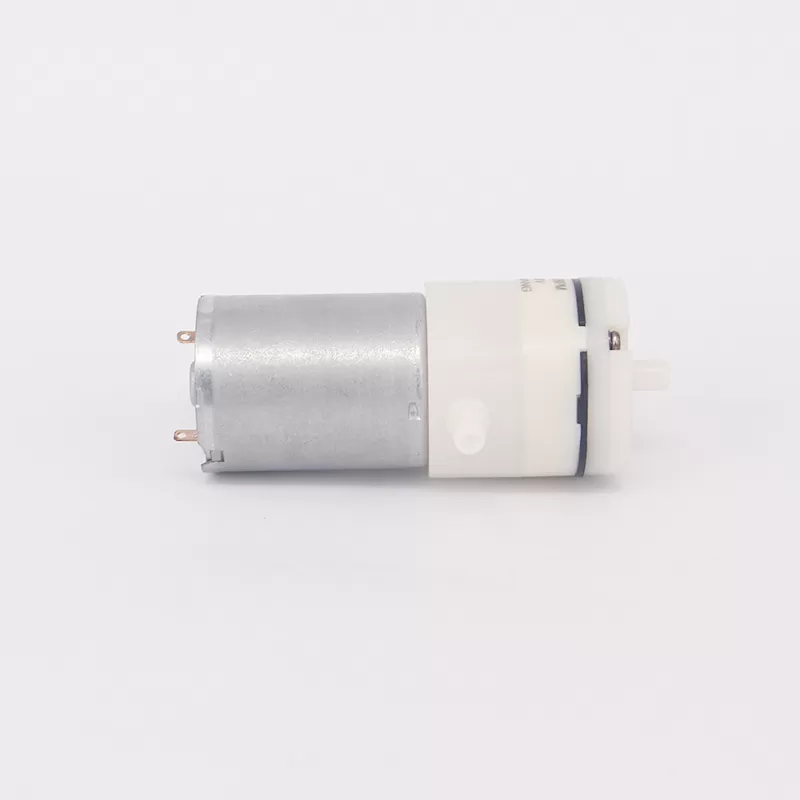

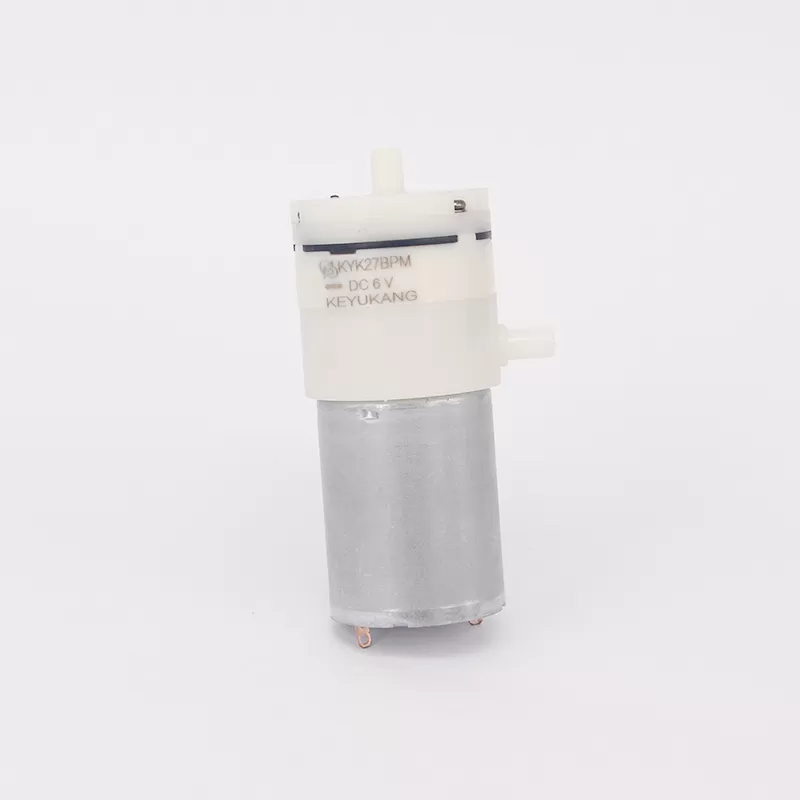

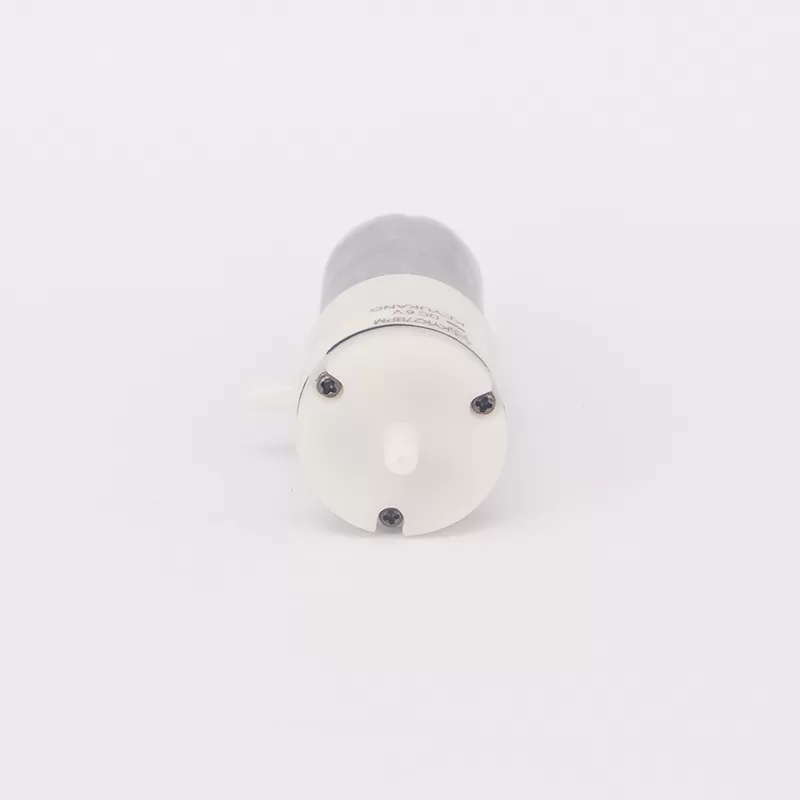

The KYK27BPM is a micro air pump designed for applications requiring lightweight construction and high efficiency. It is powered by a high-efficiency 270-series DC motor, providing stable power output, rapid response, and low energy consumption. An optimized magnetic circuit and rotor structure achieve a higher power density within a compact form factor, ensuring a reliable and continuous air supply for smart devices.
Pneumatic performance is characterized by an upgraded air path and a flexible diaphragm, enabling rapid pressure buildup, stable pressure output, and continuous flow for pressurization, suction, or circulation. With a focus on user experience, the pump features low-noise, low-vibration, and smooth operation, enhanced by an internal vibration-damping structure. Its combination of miniaturization, stability, and compatibility has made it an ideal power core for a new generation of beauty instruments, air samplers, portable devices, and smart home systems.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 3.7V | 6.0V | 12.0V | 24V |
| Rated Current | <600mA | <450mA | <350mA | <200mA |
| Air Flow | >2.5L/min | |||
| Pressure | >700mmHg | |||
| Airtightness | <3mmHg/min from 300mmHg at500CC tank | |||
| Noise | <60dB | |||
| Life test | 300 Hours | |||
| Weight | 60g | |||
| Max vacuum | >-450mmHg | |||
