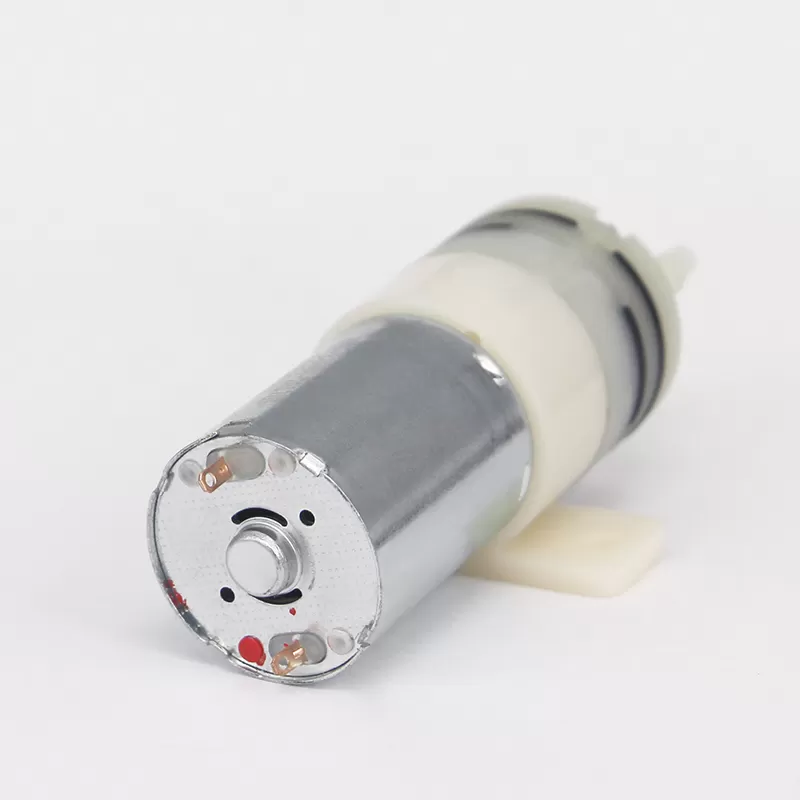

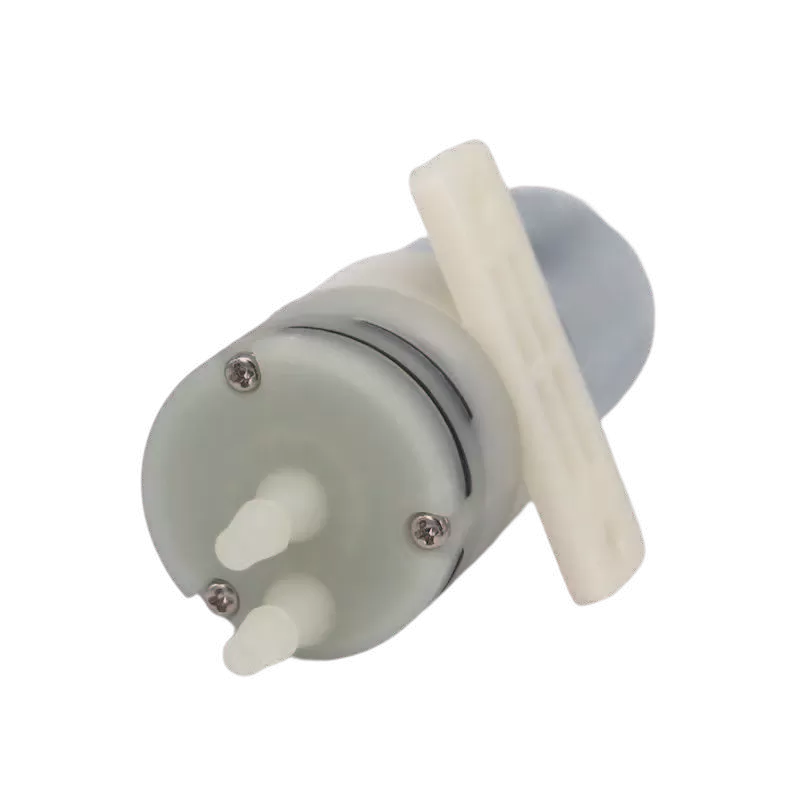

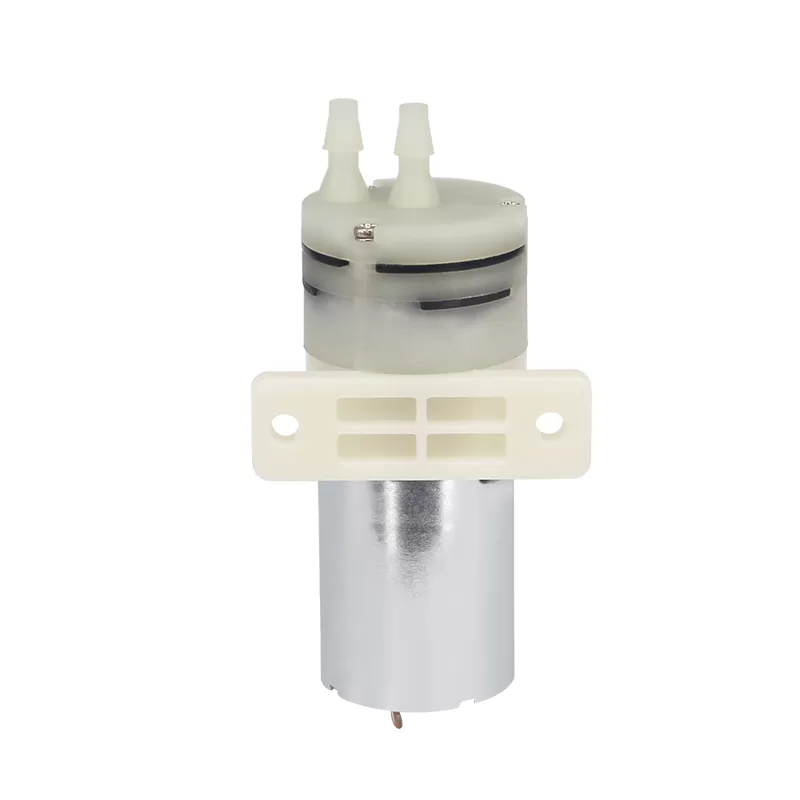

The KYK27GPW is a micro water pump powered by a high-efficiency 27-series DC motor, featuring a thickened copper coil and a low-loss carbon brush structure to ensure stable output and an extended service life during continuous operation. With low heat generation and high efficiency, it has become a preferred core component for international clients.
Guided by principles of being lightweight and energy-saving, the pump's design incorporates an optimized internal flow path to enhance hydraulic efficiency while reducing energy consumption and vibration. Its housing is constructed from corrosion-resistant engineering material, ensuring durability in diverse and humid environments. This focus on efficiency results in extremely low-noise, smooth operation, making it ideal for quiet-critical applications like beauty instrument cooling systems, desktop water purifiers, and medical care auxiliary devices.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | DC6.0V | DC12.0V | DC24.0V |
| Rated Current | ＜1000mA | ＜500mA | ＜350mA |
| Water flow | ＞600mL/min | ||
| Use fluids | Water | ||
| Noise | ＜58dB(30CM away) | ||
| Pump head | ＞1m | ||
| Suction head | ＞1m | ||
| Life test | 300Hours (50s on，20s off) | ||
| Weight | 60g | ||
