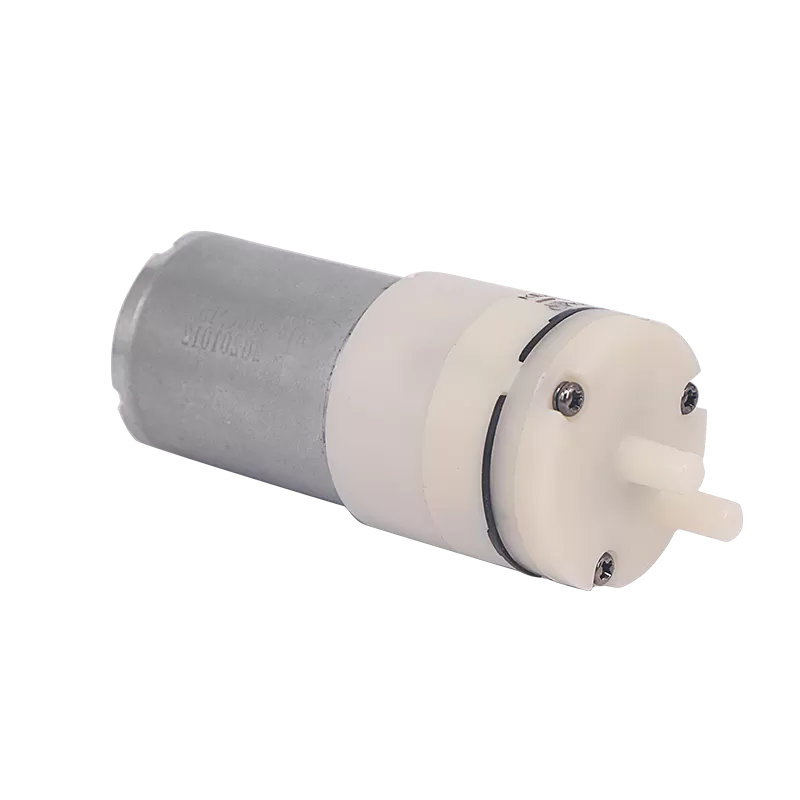

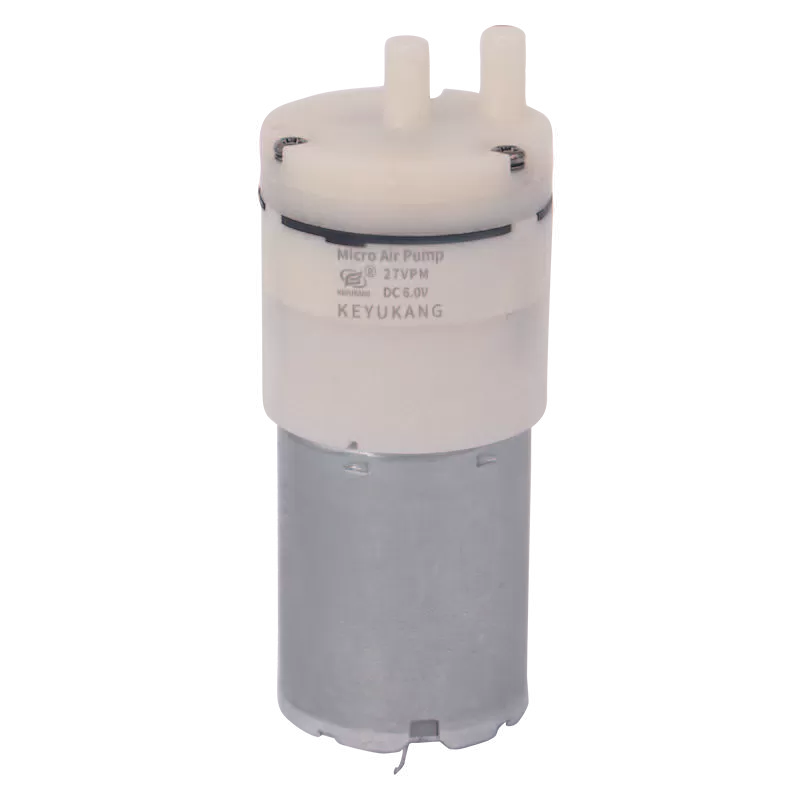

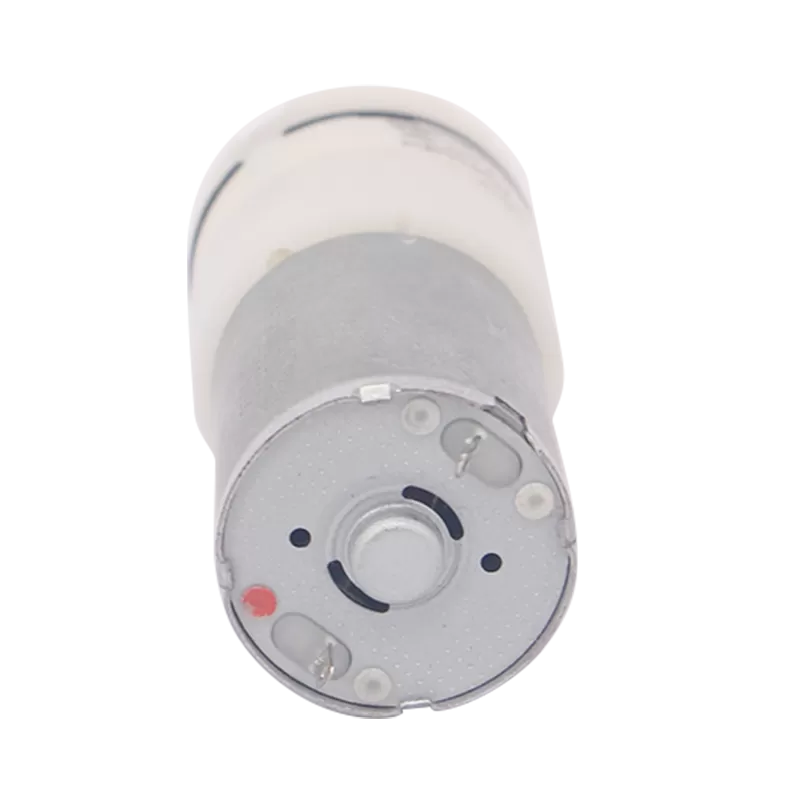

The KYK27VPM Micro Air Pump is a high-performance solution engineered for lightweight vacuum and suction equipment. It is powered by a high-quality custom motor that ensures quick startup, stable operation, and a long service life, delivering consistent negative pressure (vacuum) for robust power support. The pump features a precision-engineered chamber with superior sealing to minimize energy loss and maximize efficiency. Its highly wear-resistant internal components provide exceptional noise control, making it ideal for quiet environments. With a compact and lightweight structure that facilitates easy embedded installation, the KYK27VPM is an excellent choice for OEM/ODM projects and is widely used in beauty instruments, small suction equipment, testing tools, and portable vacuum devices. It offers the perfect balance of performance, durability, and flexibility for manufacturers seeking a reliable, high-quality core component.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 3.7V | 6.0V | 12.0V | 24V |
| Rated Current | 550mA | 450mA | 200mA | 100mA |
| Air Flow | 2.0~3.0LPM | |||
| Pressure | >650mmHg | |||
| Airtightness | <3mmHg/min from 300mmHg at 100CC tank | |||
| Noise | 62dB(3 cm away) | |||
| Life test | 500H (10s on , 7s off) | |||
| Weight | 60g | |||
| principal application | Scraping beauty equipment micro diaphragm pump | |||
