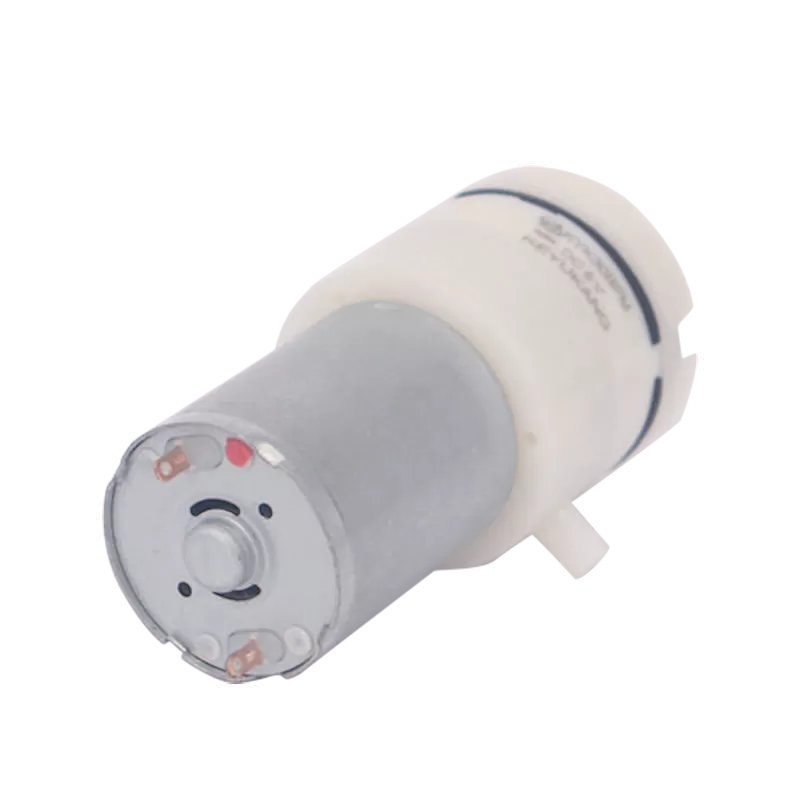

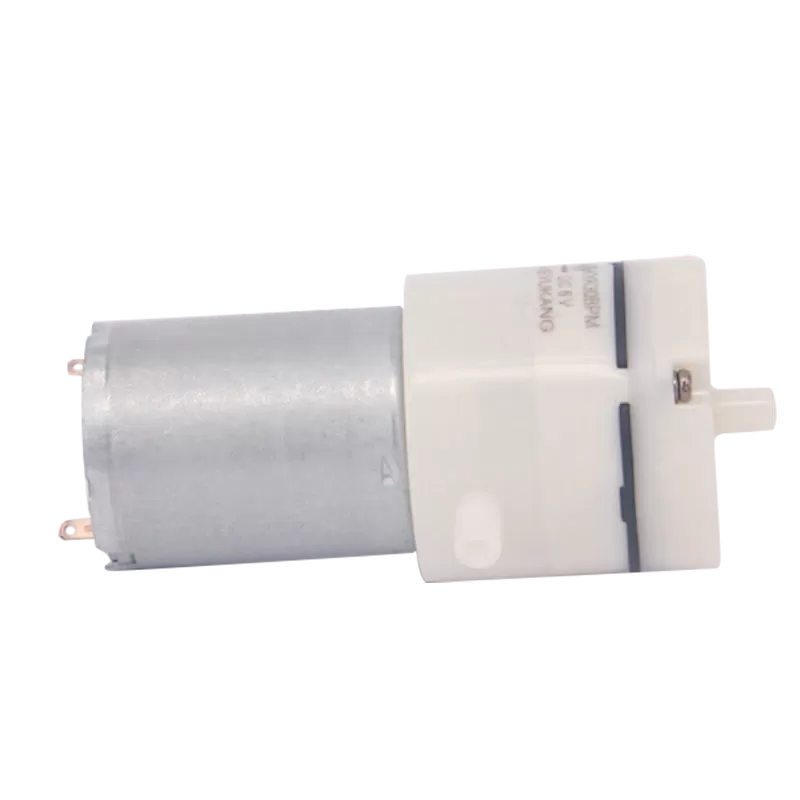

The KYK30BPM Micro Air Pump is a high-performance solution engineered for multi-industry lightweight pneumatic equipment. Powered by a high-efficiency 300-class motor, it delivers quick startup, stable pressure, and a long service life, providing reliable power for pressurization, suction, and light vacuum applications.
Structurally, it features a precision-engineered chamber and a high-seal air path with wear-resistant components, ensuring smooth airflow with minimal pressure fluctuation. Its optimized quiet design reduces operational noise, making it ideal for home and personal care products. The lightweight design and flexible mounting interfaces facilitate easy integration, and it supports full parameter customization for OEM/ODM projects. Widely exported to global markets, it is a trusted component in small booster pumps, testing equipment, vacuum-assisted tools, and personal care instruments.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | 3.7V | 7.4V | 12V |
| Rated Current | 800mA | 500mA | 180mA |
| Air Flow | 2.7~4.8LPM | ||
| Pressure | >1100mmHg | ||
| Vacuum | >600mmHg | ||
| Leakage | <3 mmHg/min from300mmHg at 100CC tank | ||
| Noise | 62dB(30 cm away) | ||
| Life test | 500H (10s on , 7s off) | ||
| Weight | 60g | ||
| principal application | Fresh-keeping equipment, juice mixer, low-noise air pump | ||
