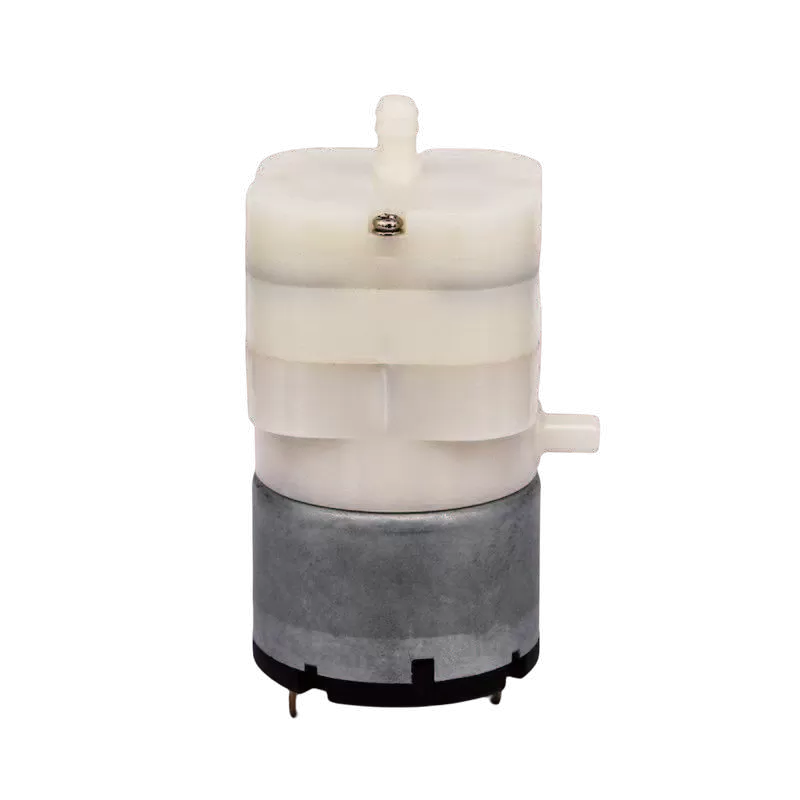

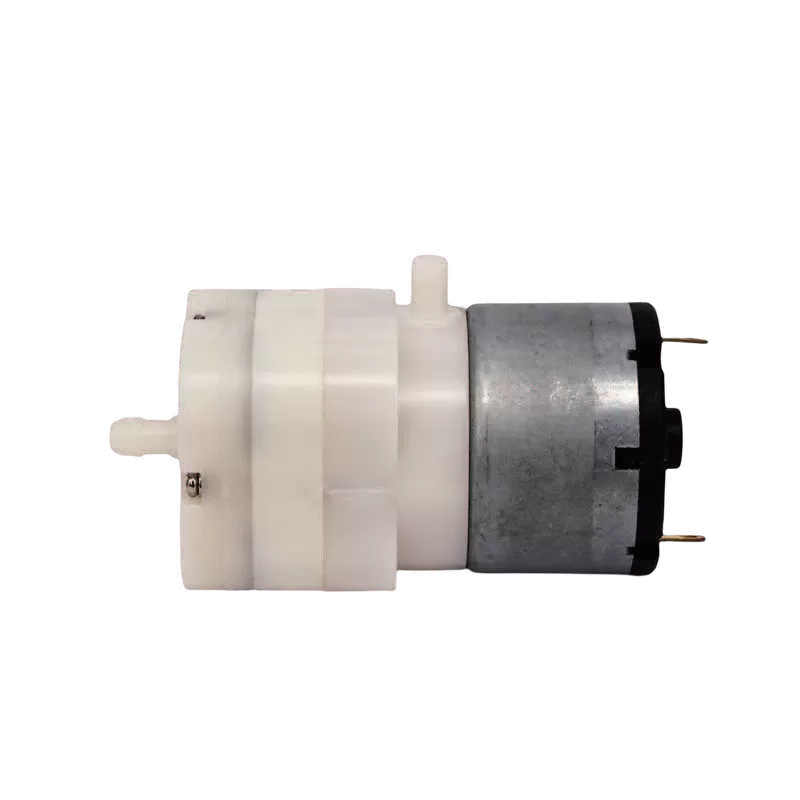

The KYK3860BPM is a low-noise micro pump designed for stability and endurance, featuring a powerful 520 DC motor drive. By refining the internal drive mechanism, this model achieves a balance of high-speed performance and reduced friction, resulting in a reliable solution for continuous pressure boosting and air circulation tasks. It serves as a critical component in vacuum preservation units, blenders, and various handheld appliances. In food preservation contexts, the pump efficiently manages air-assisted functions such as airbag activation, while its quiet operation ensures comfort in residential settings. With its high durability and compact footprint, the KYK3860BPM allows for easy integration into diverse consumer products that demand a dependable, high-flow air source.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | 3.7V | 6V | 7.4V |
| Rated Current | 1200mA | 650mA | 850mA |
| Air Flow | 3.0~5.0LPM | ||
| Pressure | >900mmHg | ||
| Airtightness | <3 mmHg/min from300mmHg at 100CC tank | ||
| Noise | 55dB(30 cm away) | ||
| Life test | 500H (10s on , 7s off) | ||
| Weight | 60g | ||
| principal application | Fresh-keeping equipment, juice mixer, low-noise air pump | ||
