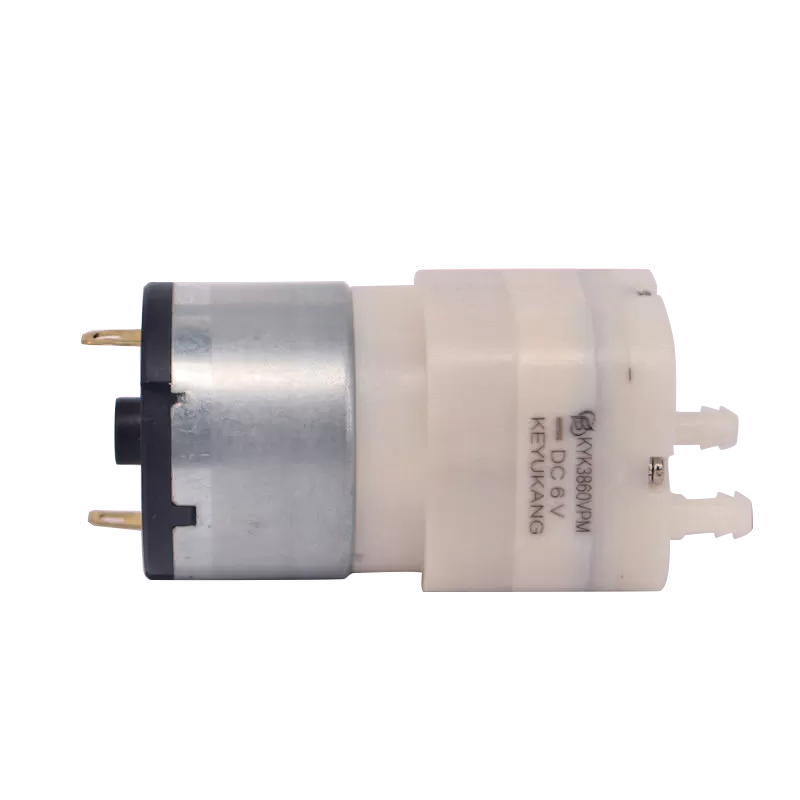

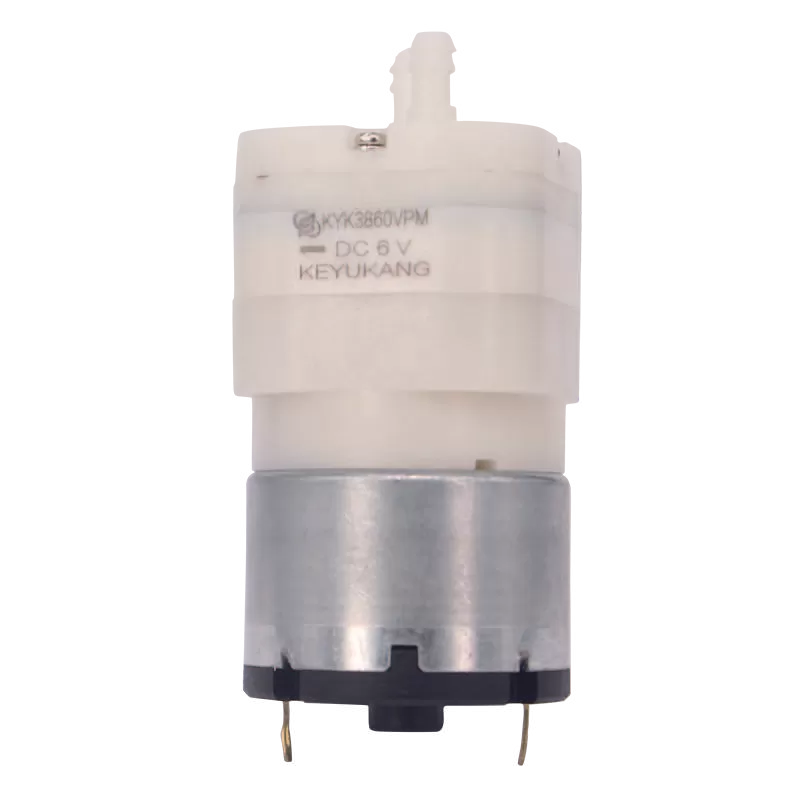

The KYK3860vpm Micro Diaphragm Pump is engineered for devices demanding superior power output and operational quality. Upgraded with a high-performance 520 motor, it delivers a significant boost in output power, torque, and load capacity compared to previous models. This enables it to provide more robust and stable airflow and negative pressure (vacuum) support for demanding applications such as oxygen injection for beauty instruments, high-frequency massage devices, and medical nebulizers.
Its optimized eccentric wheel and wear-resistant diaphragm structure ensure long-term durability and minimal performance decay, even under continuous high-load conditions. Through precision structural engineering and dynamic balance calibration, the KYK3860vpm effectively controls vibration and operational noise, ensuring a comfortable user experience and contributing to the premium quality feel of the final product.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | 3.7V | 6V | 7.4V |
| Rated Current | 1200mA | 650mA | 850mA |
| Air Flow | 3.0~5.0LPM | ||
| Pressure | >900mmHg | ||
| Airtightness | <3 mmHg/min from300mmHg at 100CC tank | ||
| Noise | 55dB(30 cm away) | ||
| Life test | 500H (10s on , 7s off) | ||
| Weight | 60g | ||
| principal application | Electric blackhead removal instrument, disinfectant spray air pump | ||
