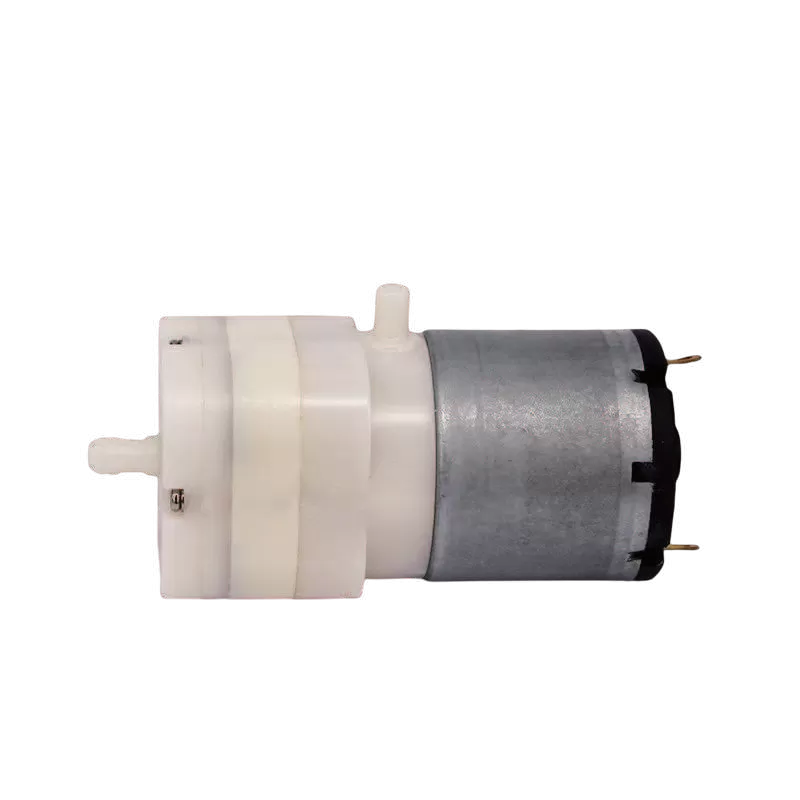

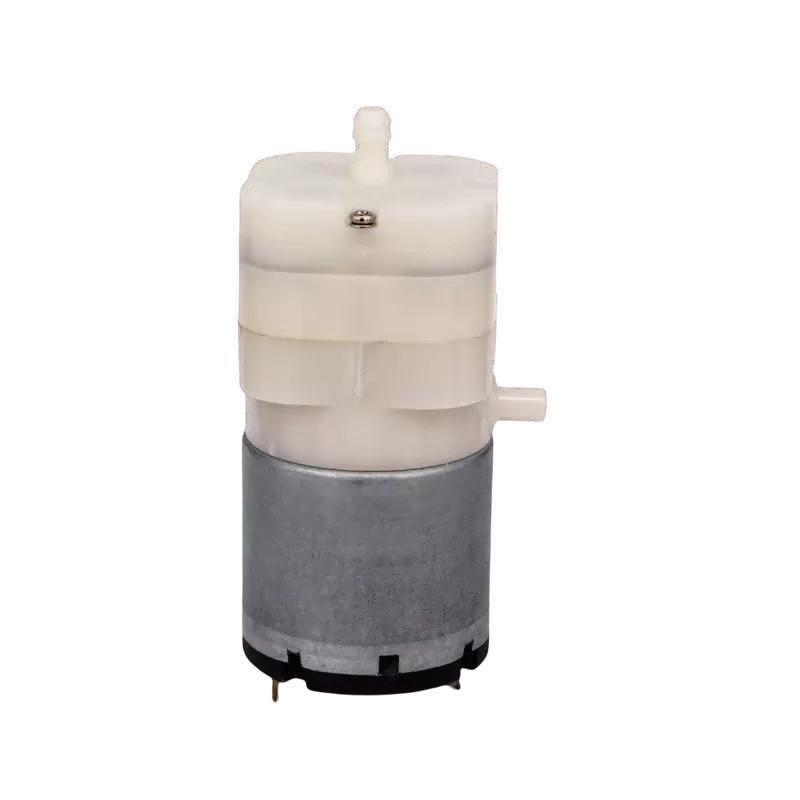

The KYK38BPM is a high-performance micro air pump powered by a high-torque 380-series DC motor, delivering robust power and exceptional stability. Its reinforced carbon brush system and optimized magnetic circuit ensure low heat generation, quiet operation, and an extended service life, significantly enhancing overall device durability even under continuous operation.
Featuring an enlarged air chamber and optimized blade dynamics, the KYK38BPM provides a higher instantaneous flow rate and sustained pressure stability for both suction and pressurization tasks. With low vibration and excellent noise control, the pump offers a smooth operational experience ideal for user-centric professional equipment. Functionally versatile, it supports multiple modes and full customization of parameters for OEM clients, making it a reliable choice for medical auxiliary devices, air quality monitors, and commercial micro-inflators.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 3.7V | 6V | 12V | 24V |
| Rated Current | 1300mA | 800mA | 500mA | 300mA |
| Air Flow | 5.0L/min | |||
| Pressure | >780mmHg | |||
| Leakage | <3mmHg/min from 300mmHg at 100CC tank | |||
| Noise | ＜65dB(30 cm away) | |||
| Life test | 500H (10s on , 7s off) | |||
| Weight | 100g | |||
| principal application | Breast pump, atomizer,massager | |||
