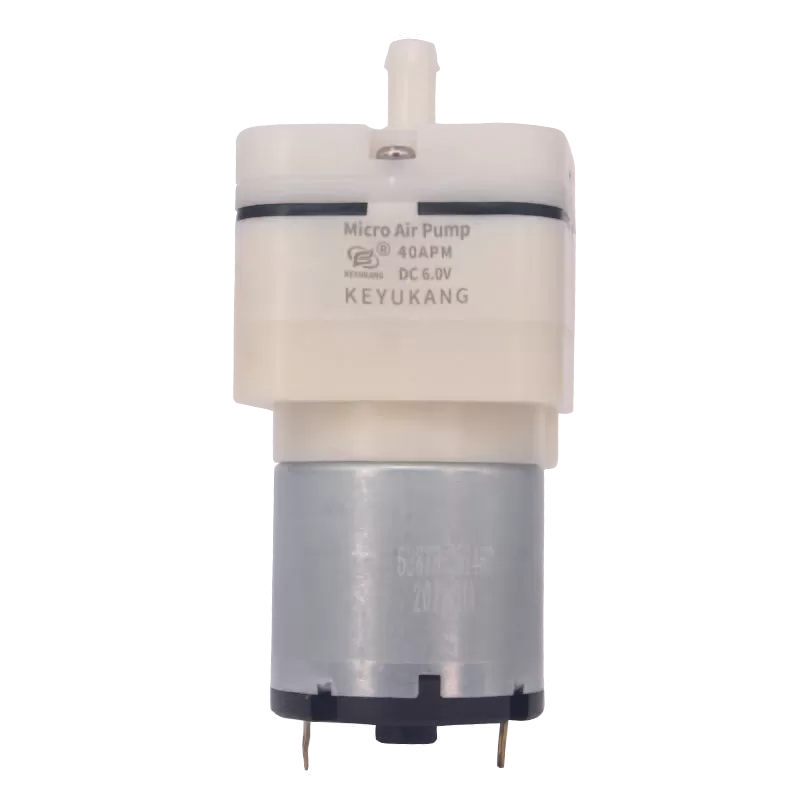

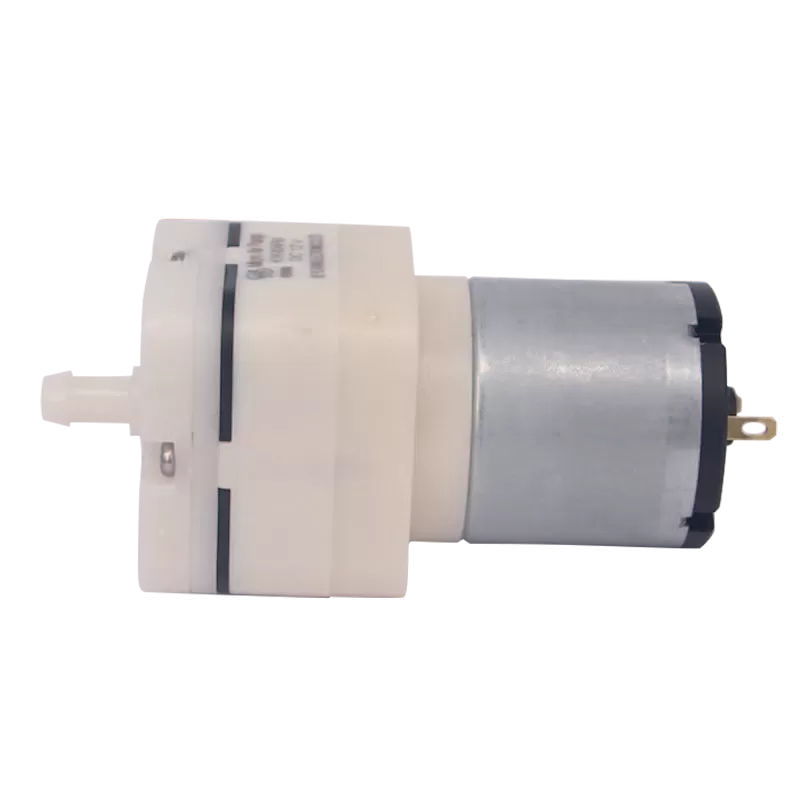

The KYK40APM is a high-performance micro air pump engineered for mid-to-high-end equipment. Powered by a 400-series DC motor, it delivers robust power output, low energy consumption, and exceptional durability. Its reinforced magnetic circuit and advanced heat dissipation design ensure stable rotational speed during prolonged operation, making it ideal for high-reliability applications.
Featuring an enlarged air chamber and an optimized diaphragm, the pump provides a higher instantaneous flow rate and sustained pressure stability for both pressurization and suction tasks. With low-noise, low-vibration operation, it supports full OEM/ODM customization of voltage, pressure, and ports, making it the ideal power core for beauty instruments, gas sampling equipment, medical auxiliary devices, and smart home systems.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 3.7V | 6V | 12V | 24V |
| Rated Current | 2000mA | 1200mA | 600mA | 300mA |
| Air Flow | 6.0LPM | |||
| Pressure | >700mmHg | |||
| Airtightness | <3mmHg/min from 300mmHg at 100CC tank | |||
| Noise | 55dB(3 cm away) | |||
| Life test | 500H (10s on , 7s off) | |||
| Weight | 115g | |||
| principal application | Micro beauty instrument air pump, spray air pump | |||
