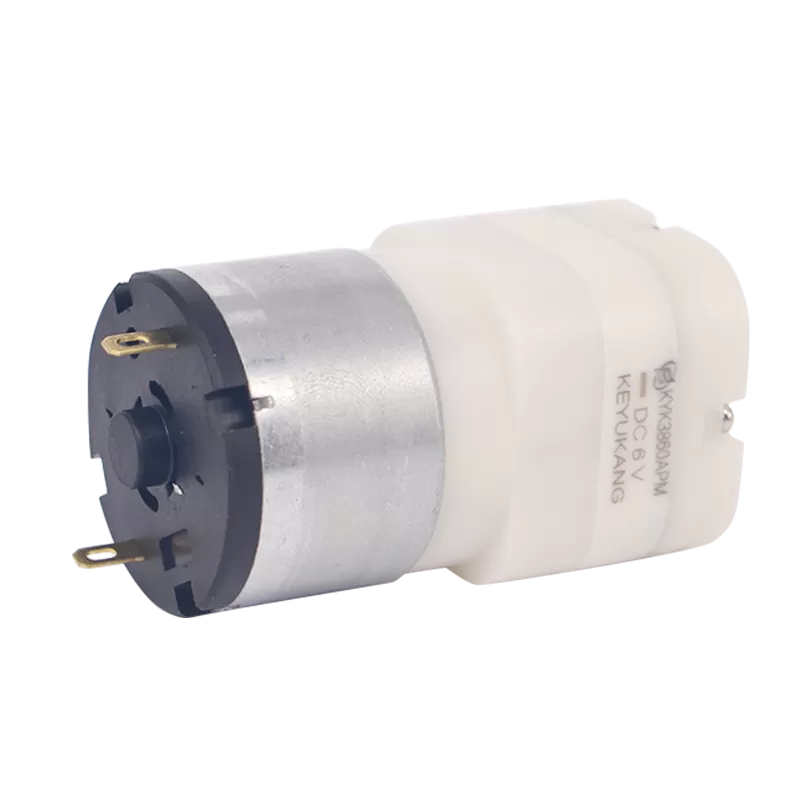

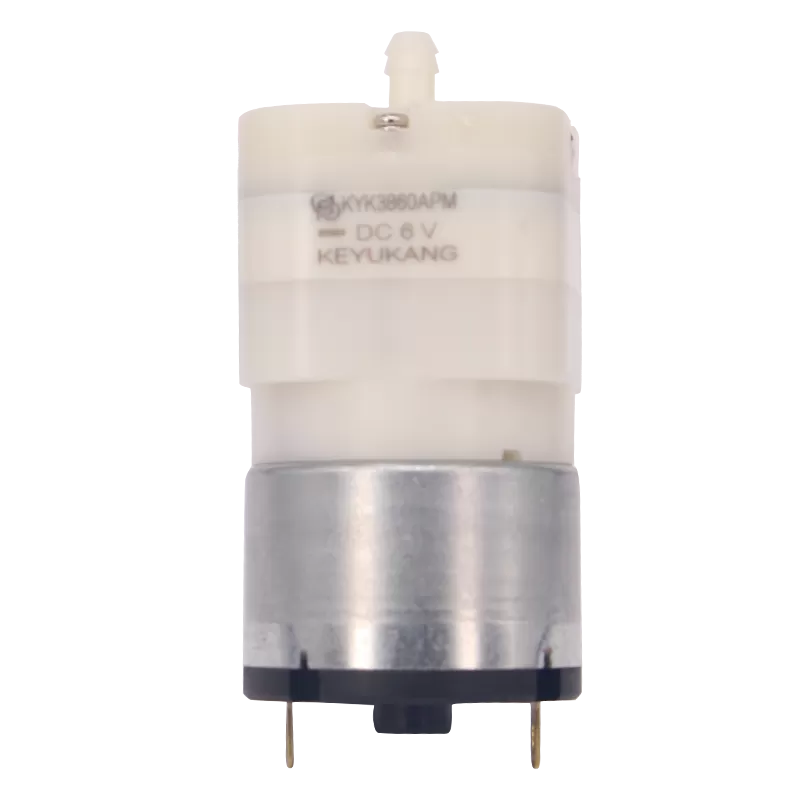

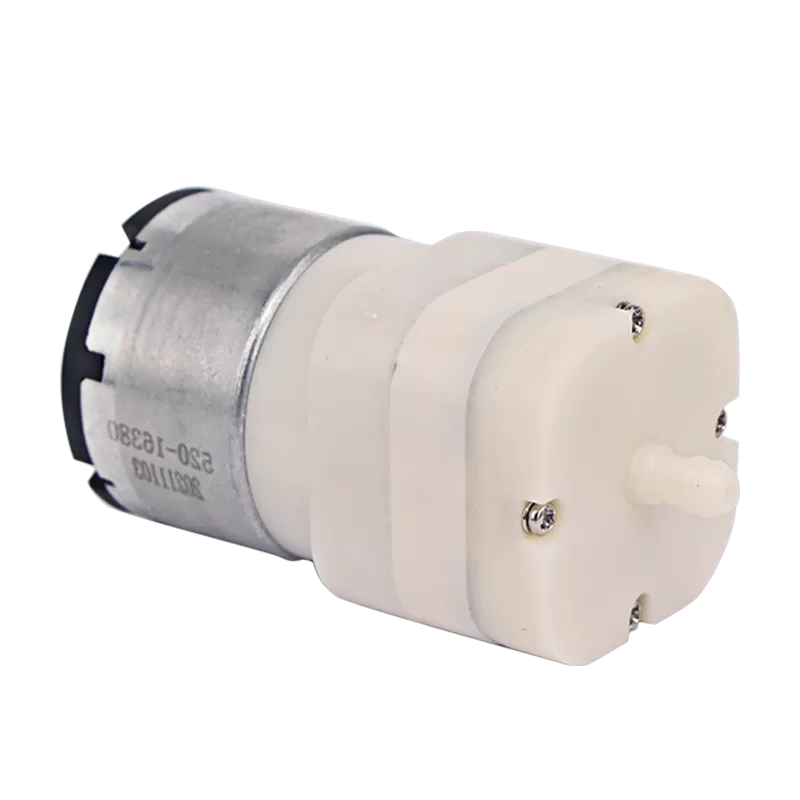

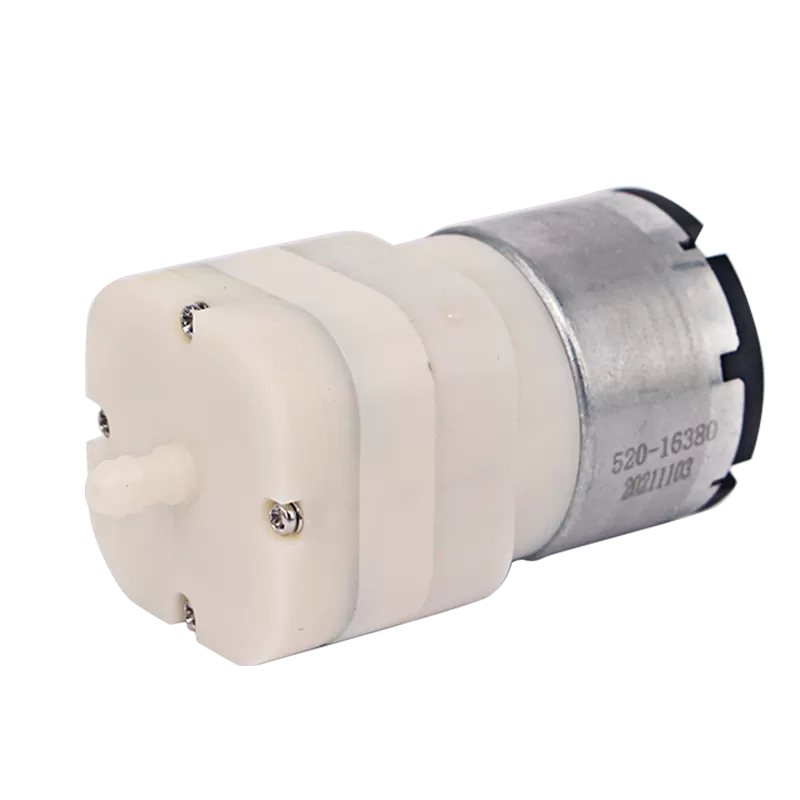

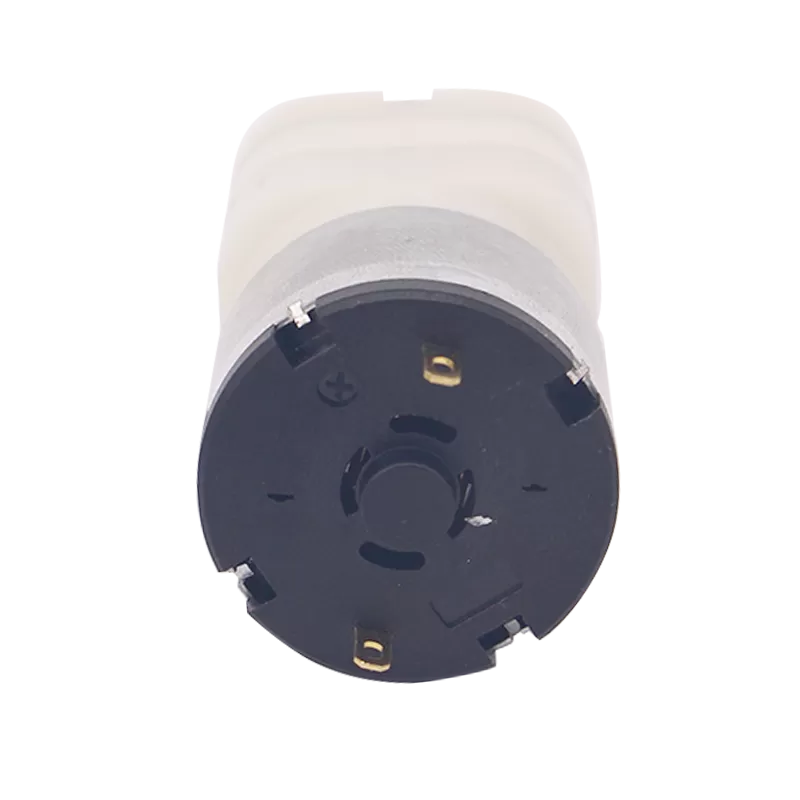

The KYK3860APM Micro Air Pump, powered by a high-performance 520 DC motor, delivers robust suction and high-pressure output, engineered for devices requiring continuous power and stable performance. Its compact yet powerful design enables seamless integration into a wide range of products, including electric massagers, foot spas, portable inflators, and suction booster pumps, significantly enhancing end-device functionality. Featuring a high-seal structure and wear-resistant materials, the pump ensures stable, low-noise operation over extended periods. This powerful airflow efficiently drives airbag inflation/deflation for more precise massage rhythms and provides continuous aeration in foot spas to improve therapeutic effects. In inflation and pressure-boosting applications, the KYK3860APM offers quick response and consistent pressure, while its high-durability motor and precision air path design minimize failure rates and extend the overall product lifespan.
| PRODUCT PERFORMANCE | |||
 | |||
| Rated Voltage | 3.7V | 6V | 7.4V |
| Rated Current | 1200mA | 650mA | 850mA |
| Air Flow | 3.0~5.0LPM | ||
| Pressure | >900mmHg | ||
| Airtightness | <3 mmHg/min from300mmHg at 100CC tank | ||
| Noise | 55dB(30 cm away) | ||
| Life test | 500H (10s on , 7s off) | ||
| Weight | 60g | ||
| principal application | Electric massager, footbath air pump | ||
