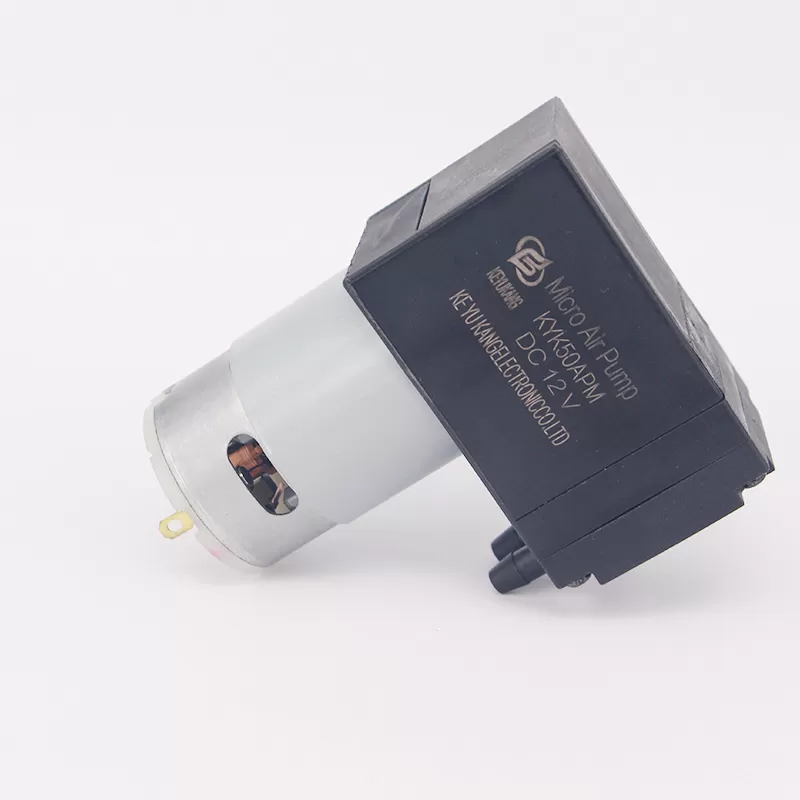

The KYK50APM is a micro air pump engineered for high-end applications where robust power and long-term reliability are essential. At its core is a high-load 500-series DC motor, featuring a reinforced carbon brush and an optimized magnetic circuit. This construction ensures stable output under high pressure and extends the pump's service life, making it a dependable component for industrial and commercial equipment.
Performance is further enhanced by an optimized air path and an upgraded diaphragm material, which together deliver a high flow rate and strong, consistent pressure for both pressurization and suction tasks. Its low-noise, low-vibration design contributes directly to a superior user experience, offering a distinct advantage in quiet-critical devices. With flexible customization of voltage, interfaces, and performance parameters, the KYK50APM is a highly adaptable solution for beauty and wellness devices, air monitoring instruments, and smart home systems.
| PRODUCT PERFORMANCE | ||
 | ||
| Rated Voltage | 12V | 24V |
| Rated Current | 1000mA | 500mA |
| Air Flow | ＞8.0L/min | |
| Pressure | ＞800mmHg | |
| Negative Pressure | ＜-500mmHg | |
| Leakage | <3mmHg/min from 300mmHg at 100CC tank | |
| Noise | ＜68dB(30 cm away) | |
| Life test | 500H (10s on , 7s off) | |
| Weight | 115g | |
| principal application | self-priming pump electric diaphragm pump | |
