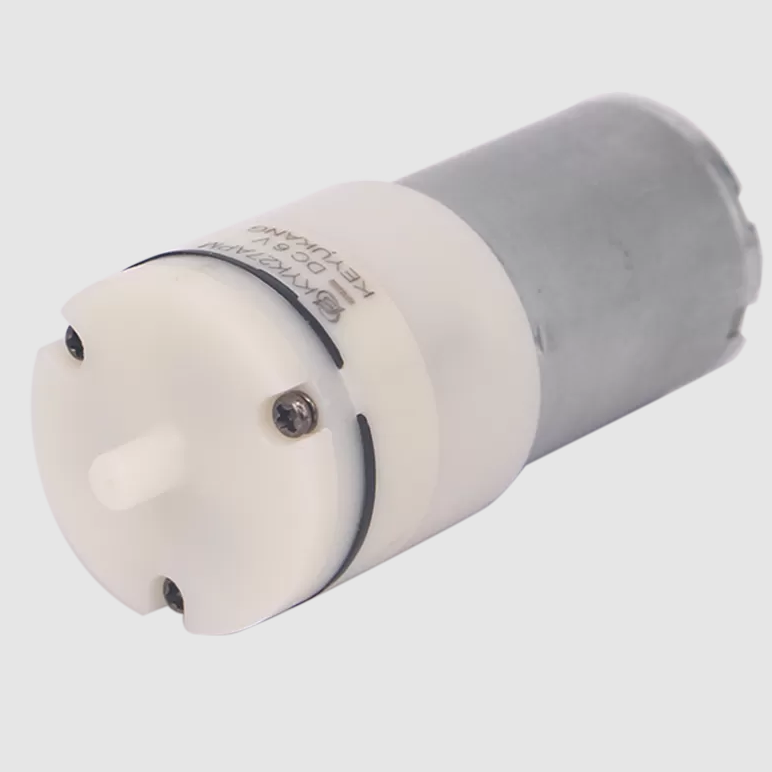

In industrial OEM projects, the cheapest pump is often the most expensive after launch. Low-cost brushed-motor miniature air pump units can look attractive on a unit price comparison, but their short service life drives frequent warranty claims, high after-sales labor cost, emergency replacement shipments, and long-term damage to brand reputation. For buyers sourcing from a mini air pump factory, the smarter comparison is not unit price — it is lifetime performance and total cost of ownership.
The life gap between brushed and BLDC designs is not marginal. Brushed miniature pumps are commonly discussed at around 1,000 hours of operating life under continuous or demanding duty conditions, while BLDC versions can reach 3,000 hours in suitable applications. That is a 10x difference in MTBF — and at scale, it translates directly into warranty return rates, service labor budgets, and customer satisfaction scores that affect renewal and referral business.
This article builds the full business case: working principle, TCO model, specification checklist, application fit, and integration guidance so your engineering and procurement teams can justify the BLDC investment with numbers, not just intuition.
The reliability gap between brushed and BLDC miniature air pumps is not a marketing claim — it is a direct consequence of the wear mechanisms built into each motor type.
A brushed DC motor uses carbon brushes that press against a rotating commutator ring to deliver current to the motor windings. Every revolution involves mechanical contact between the brush and commutator surface. That contact generates friction, heat, and electrical arcing — all of which progressively wear both the brush and the commutator.
In a miniature pump running at several thousand RPM under continuous or high-duty-cycle conditions, the brush wear rate is significant. As brushes wear down, contact resistance increases, motor efficiency drops, and eventually the brush can no longer maintain reliable contact. The result is degraded performance followed by failure — often without warning, and often at the worst possible time for the end customer.
Carbon dust from brush wear accumulates inside the motor housing. In sealed or semi-sealed pump enclosures, this dust can contaminate the pump head, affect valve function, and accelerate wear on other components. In temperature-sensitive or clean environments, this is an additional failure pathway that brushed designs cannot eliminate.
A brushless DC motor eliminates the brush-commutator interface entirely. Current switching is handled electronically by the motor driver, and the rotor contains permanent magnets with no sliding contact against any stationary surface. The primary wear mechanisms of the brushed design — brush friction, commutator erosion, and carbon dust generation — simply do not exist.
The practical consequence is a fundamentally different reliability profile. BLDC miniature air pumps shift the dominant failure modes away from motor wear and toward factors that are more controllable: bearing life, pump head wear, and operating condition management. With proper application engineering — correct operating point, adequate filtration, and thermal management — BLDC pumps can sustain consistent performance across an order of magnitude more operating hours than brushed equivalents.
More stable speed control is a secondary benefit. BLDC motors maintain more consistent rotational speed under varying load conditions, which translates into more stable flow and pressure output across the pump's operating life. For applications where measurement repeatability or process consistency depends on stable airflow, this performance stability is as important as the reliability improvement.
The business case for BLDC over brushed is a TCO argument, not a unit price argument. The following framework makes the comparison concrete.
The table below illustrates the illustrative lifetime difference and its downstream consequences. Actual values depend on application conditions, duty cycle, and operating environment — but the directional relationship is consistent across pump types and motor technologies.
| Parameter | Brushed Miniature Pump | BLDC Miniature Pump |
|---|---|---|
| Typical operating life | ~1,000 hours | ~3,000 hours |
| Relative MTBF | Baseline | ~10x higher |
| Failure rate at 5,000 hours | High — multiple replacements expected | Low — within rated life |
| Carbon dust generation | Yes — accumulates over time | None |
| Speed stability over life | Degrades as brushes wear | Maintained by electronic control |
| Noise trend over life | Increases as brushes wear | Stable |
Unit price is visible at the time of purchase. The costs that brushed pumps generate are distributed across the product's service life and often appear in budget lines that are not directly connected to the pump procurement decision:
Warranty replacements — each field failure requires a replacement unit, return logistics, and incoming inspection. At scale, even a modest failure rate generates a significant annual replacement cost.
Service labor — diagnosing a pump failure in a deployed instrument, scheduling a service visit, and performing the replacement takes technician time that is rarely fully recovered from the customer.
Downtime cost — in industrial analyzers, packaging lines, or automation equipment, an unplanned pump failure stops the process. The cost of that downtime — lost production, delayed results, or missed SLA — is often larger than the cost of the pump itself.
Customer satisfaction and renewal risk — repeated failures damage the OEM's reputation with the end customer. In competitive markets, a reliability problem with one component can affect the renewal decision for the entire system.
TCO = (pump unit cost) + (warranty replacements × replacement unit cost) + (service labor × labor rate) + (downtime cost per event × expected events) + (reputation and penalty risk)
When this formula is applied to a realistic failure rate for brushed pumps versus BLDC pumps over a 3 to 5 year product life, the higher upfront cost of the BLDC unit is typically recovered within the first year of deployment — and the savings compound for the remaining service life.
Procurement decisions fail when the specification is incomplete. Use this checklist when qualifying a mini air pump factory and preparing a purchase order for BLDC miniature pumps.
| Specification | What to Define |
|---|---|
| Flow rate | Required flow at the operating pressure point, not just free-flow |
| Pressure / vacuum | Operating range and peak requirement |
| Duty cycle | Intermittent or continuous; start-stop frequency per hour |
| Voltage | Nominal supply voltage and acceptable range |
| Current limit | Maximum allowable inrush and steady-state current |
| Control method | PWM speed control, on/off, or analog input |
| Specification | What to Define |
|---|---|
| Lifetime target | Required operating hours and cycles under defined conditions |
| MTBF expectation | Minimum acceptable MTBF for the application |
| Ambient temperature | Operating and storage range |
| Humidity and dust | IP rating or ingress protection requirement |
| Chemical exposure | Media compatibility — air only, or with vapors or aerosols |
| Noise and vibration | Maximum allowable dB(A) at defined distance and mounting condition |
| QC and traceability | Incoming inspection plan, life test approach, lot identification |
Providing complete specifications before the quotation stage prevents the most common failure mode in pump procurement: selecting a unit that meets the price target but fails the application requirements within the first year of deployment.
Stable flow is a measurement quality requirement in gas analyzers, particle counters, and environmental monitoring instruments. A brushed pump that degrades over time introduces drift into the measurement — a problem that may not be immediately obvious but affects data quality and instrument credibility. BLDC pumps maintain consistent flow across their operating life, supporting measurement repeatability. When a pump failure causes instrument downtime in an industrial monitoring application, the cost of the downtime typically exceeds the cost of the pump by a large margin.
Non-patient-contact medical and lab OEM applications — sample handling, reagent delivery, purging — carry strict service KPIs and reliability expectations. A warranty failure in a medical instrument triggers a service event that is expensive, disruptive, and potentially damaging to the OEM's relationship with the healthcare customer. BLDC miniature air pumps reduce the frequency of these events and support the reliability documentation that medical OEM customers increasingly require.
Suction and air-assist functions in packaging lines and automation equipment are often running continuously or at high duty cycles. An unplanned pump failure stops the line. In high-throughput packaging environments, even a short stoppage has a measurable cost in lost output. BLDC pumps' higher MTBF reduces the frequency of these events and supports predictive maintenance planning rather than reactive failure response.
Battery-powered industrial devices benefit from BLDC pumps in two ways: higher motor efficiency extends battery life per charge, and longer pump life reduces the service burden on devices that are deployed in the field and difficult to access for maintenance. The combination of efficiency and reliability makes BLDC the default choice for portable applications where both operating cost and service cost matter.
Even a high-quality BLDC miniature air pump will underperform if the application engineering is incorrect. The following integration steps protect the pump's rated life:
Confirm the operating point: Verify that the required flow and pressure combination falls within the pump's efficient operating range. Running a pump continuously at or near its maximum pressure limit accelerates wear and reduces life.
Add upstream filtration: Particulate contamination is one of the primary causes of premature pump failure in field-deployed equipment. A filter matched to the expected contamination level protects the pump head and valve components.
Manage thermal conditions: Confirm that the enclosure temperature at the pump mounting location stays within the rated ambient temperature range under worst-case operating conditions. Elevated temperature is the second major accelerator of pump wear.
Use soft-start and proper driver control: Inrush current at startup stresses motor windings and bearings. A driver with soft-start capability reduces this stress and extends bearing life.
BLDC pumps shift the maintenance focus away from motor wear and toward the system-level factors that affect pump life:
Filter replacement at defined intervals based on the contamination level of the application environment
Tubing and connection leak checks at scheduled service intervals
Periodic performance verification — flow and pressure measurement against the original specification — to detect gradual degradation before it becomes a failure
The absence of brush wear means that the motor itself requires no scheduled maintenance. This simplifies the service procedure and reduces the skill level required for field maintenance.
The payback argument for BLDC over brushed is strongest at production scale and over a multi-year product life. Consider a simplified comparison for an OEM shipping 5,000 units per year with a 5-year product life:
| Cost Category | Brushed Pump Scenario | BLDC Pump Scenario |
|---|---|---|
| Unit price premium | Baseline | +$X per unit |
| Expected field failures (5 yr) | High — multiple per unit | Low — within rated life |
| Warranty replacement cost | High | Low |
| Service labor cost | High | Low |
| Customer satisfaction impact | Negative — repeat failures | Positive — reliable performance |
| Total 5-year cost per unit shipped | Higher than unit price suggests | Lower than unit price suggests |
The exact numbers depend on the application, failure rate, and service cost structure — but the directional conclusion is consistent: at scale and over time, BLDC miniature air pumps deliver lower total cost per shipped product than brushed alternatives, even when the upfront unit price is higher.
For industrial OEMs, the real decision is not brushed versus brushless — it is short-term savings versus long-term cost control. Brushed miniature air pumps can look attractive on unit price, but their shorter operating life — often discussed at around 1,000 hours under demanding conditions — triggers repeat failures, high warranty expense, and reputational damage that compounds over the product's service life. As experienced mini pump manufacturers understand, a BLDC miniature air pump is the smarter investment: higher MTBF, more stable performance across its operating life, and lower total cost per shipped product — especially at scale and in applications where downtime and service labor costs are significant.
To receive a configuration matched to your application and production requirements, provide the following when you submit:
Work conditions: Media type (air only or with vapor or aerosol), ambient temperature range, enclosure layout and thermal conditions, duty cycle, and expected operating hours per day.
Quantity: Prototype quantity, pilot run quantity, and annual volume forecast.
Size and spec: Target flow rate and pressure or vacuum at the operating point, supply voltage, allowable noise level in dB(A), size and weight constraints, and port size or connection type.
Target metrics: Lifetime hours target, MTBF target, maximum power consumption, noise and vibration limits, and any IP rating requirements.
Current problem: High warranty return rate, noisy operation that affects end-product quality, unstable flow affecting measurement or process performance, overheating in the enclosure, or short brushed-motor life driving repeat service events.
1. What is a miniature air pump?
A miniature air pump is a compact electric pump used to generate airflow and pressure or vacuum inside OEM equipment. It is typically used for sampling, actuation, purging, pneumatic functions, or fluid transfer in applications where space, power consumption, and noise are constrained. Miniature air pumps are available with brushed DC motors or brushless DC (BLDC) motors, and the motor type is the primary determinant of operating life and reliability in demanding applications.
2. How does a BLDC pump compare with a brushed pump in practice?
Brushed pumps use carbon brushes that press against a rotating commutator to deliver current to the motor windings. This mechanical contact wears progressively, generating carbon dust and increasing contact resistance until the motor fails. BLDC pumps eliminate the brush-commutator interface entirely — current switching is handled electronically, and there are no sliding contacts. The result is a fundamentally longer operating life, more stable speed and flow performance across that life, and no carbon dust generation. The tradeoff is a higher upfront unit cost and the need for an appropriate motor driver, but for most industrial OEM applications the TCO calculation favors BLDC clearly.
3. How do I calculate ROI beyond the purchase price?
Build a TCO model that includes: warranty replacement unit cost multiplied by the expected failure rate over the product life; service labor cost per event multiplied by the expected number of service events; downtime cost per event in the end customer's application; and any penalty or reputation risk associated with reliability failures. When this full cost is compared between brushed and BLDC options over a 3 to 5 year product life, the higher upfront cost of the BLDC unit is typically recovered within the first year, and the savings compound for the remaining service life.
4. Do we need to redesign our product to switch from a brushed to a BLDC miniature air pump?
In many cases, the changes required are modest: updating the motor driver or control circuit to support BLDC commutation, confirming electrical compatibility including voltage, current, and PWM control interface, verifying that the mounting dimensions and port connections are compatible, and revalidating the thermal and EMC performance of the updated design. The pump head and fluidic connections often remain unchanged. Most OEM teams handle this as an engineering revision rather than a full product redesign, and the effort is typically justified by the reliability improvement.
5. What parameters should we provide to select the right pump from a mini air pump factory?
Provide the following: required flow rate and pressure or vacuum at the actual operating point (not free-flow or blocked-flow extremes), supply voltage and current limit, duty cycle and start-stop frequency, lifetime target in operating hours and cycles, ambient and enclosure temperature range, maximum allowable noise level, filtration conditions and media compatibility requirements, size and weight constraints, port size and connection type, and expected annual production volume. Complete specifications at the inquiry stage allow the factory to recommend the correct pump model, confirm life test data relevant to your application, and provide an accurate quotation.
