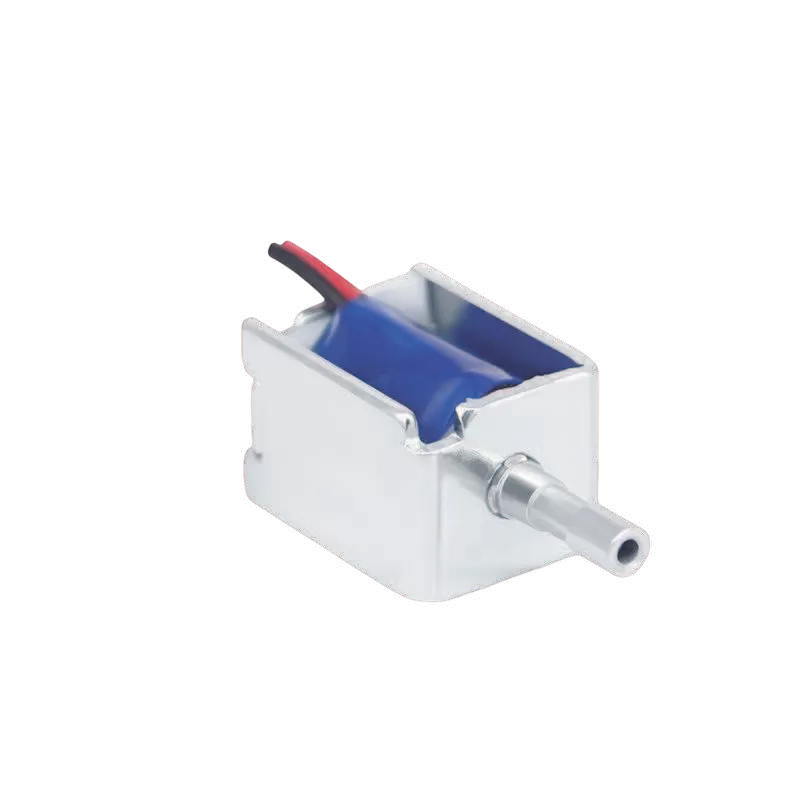

The KYK0526GL is a compact and highly responsive micro solenoid valve, engineered to deliver a competitive advantage in size, speed, and cost-effectiveness. It operates on a micro-solenoid coil drive, which enables instantaneous switching for high-precision control in automated equipment. Designed for a long service life, its durable internal components are tested for hundreds of thousands of cycles, making it a reliable choice for high-frequency applications. The valve features a miniaturized, high-strength metal body for easy embedded installation and excellent heat dissipation. Delivering quiet, stable, and precise control of air and other non-corrosive gases, it is an ideal component for beauty instruments, medical auxiliary devices, gas detectors, and automated pneumatic control systems.
| PRODUCT PERFORMANCE | ||||
 | ||||
| Rated Voltage | 3.7V | 6V | 12V | 24V |
| Rated Current | 500mA | 300mA | 220mA | 160mA |
| Resistance(Ω) | 14~98Ω | |||
| Exhaust time | 400mmHg 100CC tank, exhaust <3S | |||
| Use fluids | Air | |||
| Airtightness | 400mmHg 100CC tank, leakage <3mmHg/MIN | |||
| Life test | 500H (1.7s on , 0.8s off) | |||
| Weight | 17g | |||
| principal application | Normally open relief valve for sphygmomanometers, medical devices | |||
